Minehound VMR3 – Dual-Sensor Mine Detector (Copy)

VMR3G Dual Sensor Mine Detector Datasheet

Minehound VMR3 – Dual-Sensor Mine Detector (Copy)

Dual-Sensor Detector with LED Display. The VMR3 “Minehound” dual-sensor detector is internationally proven. It is ideal for the simultaneous detection of metal and metal-free objects. This is a decisive advantage e.g. for the detection of IEDs.

    • ✔Ground Penetrating Radar and Metal Detection

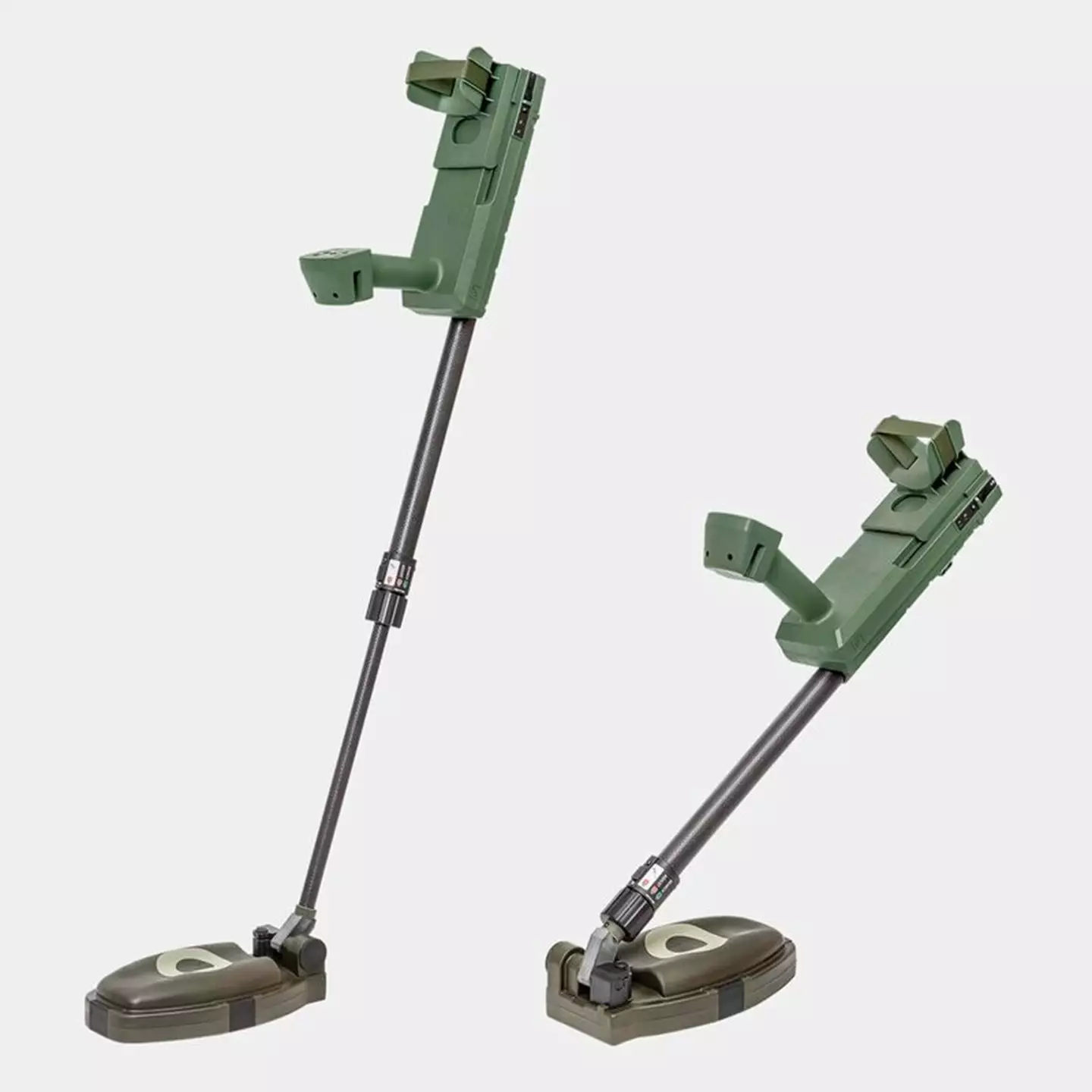

    • ✔Rugged mechanical design with high-quality carbon telescoping carrying bar
    • ✔High sensitivity for high-efficiency soil compensation

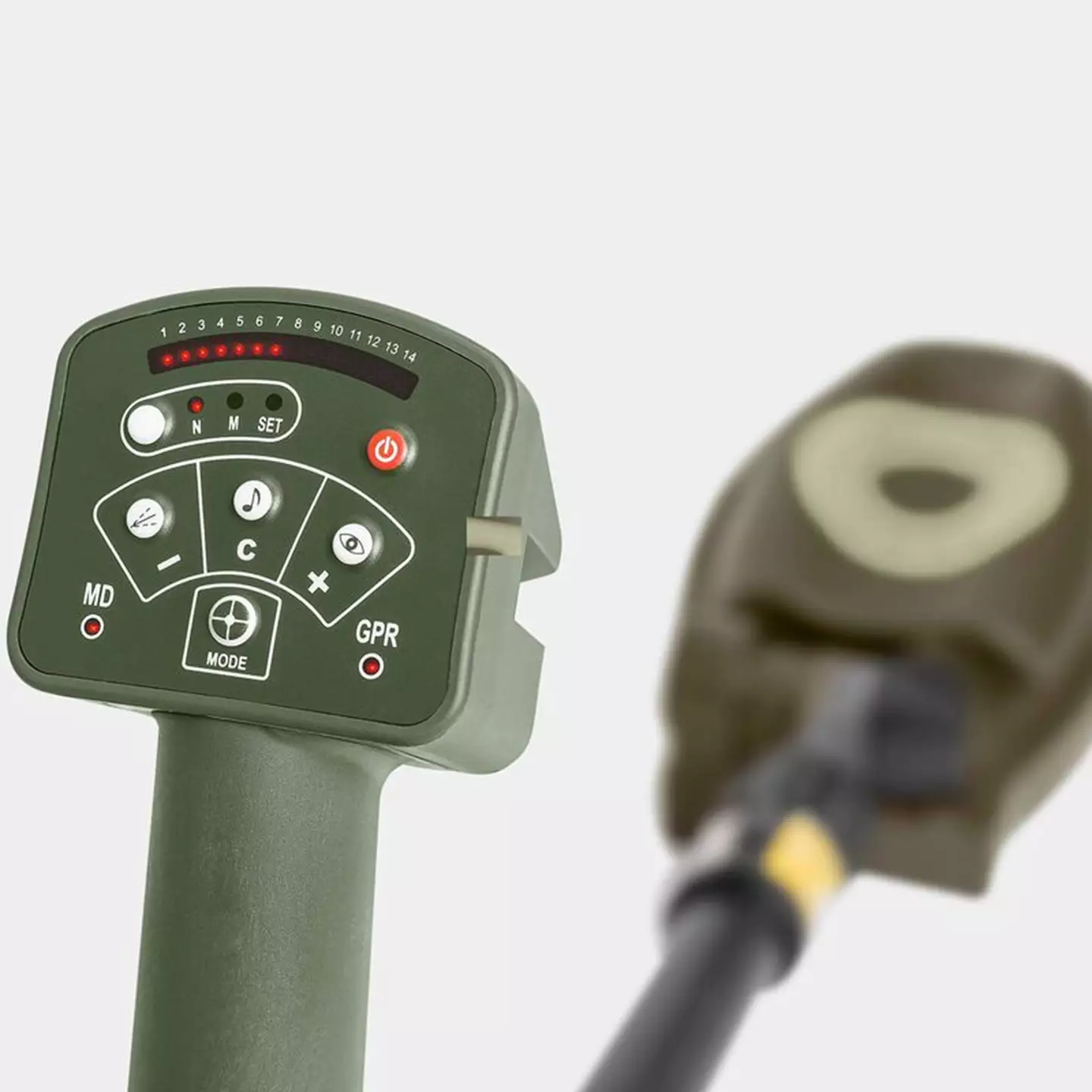

    • ✔Integrated OLED display for simplified operation
    • ✔Easily noticeable alarm indication (audio/visual/vibration)
Click to enlarge
providing Ground Penetrating Radar technologies and services for over 15 years. For enquiries not related to the UK market (either for end use or via UK Government Export), Chelton recommend contacting Vallon GmbH initially at the following address: [email protected].

Suitable for the following
searches

Mines

Suited for mine detection. Thanks to maximum sensitivity, also reacts to mines with low or no metal content.bfg

UXO

Ideal for shallow searching for all types of metal (e. g. unexploded ordnances, submunitions, etc.).

IED

Thanks to a ground-penetrating radar, it is ideal for efficiently searching for objects with low or no metal content.

Specification

product categories

Minehound VMR3

Minehound VMR3G

Wirehound VR1

VMR3

VMR3G

VR1

Sensor

Metal detector (MD) and ground-penetrating radar (GPR)

Metal detector (MD) and ground-penetrating radar (GPR)

GPR search head

Alarm Signal

Visual (LED)/audio/vibration

Visual (graphic display)/audio/vibration

Visual (graphic display)/audio/vibration

Operating Time (LiPo)

8.5 hr

7.5 hr

10 hr

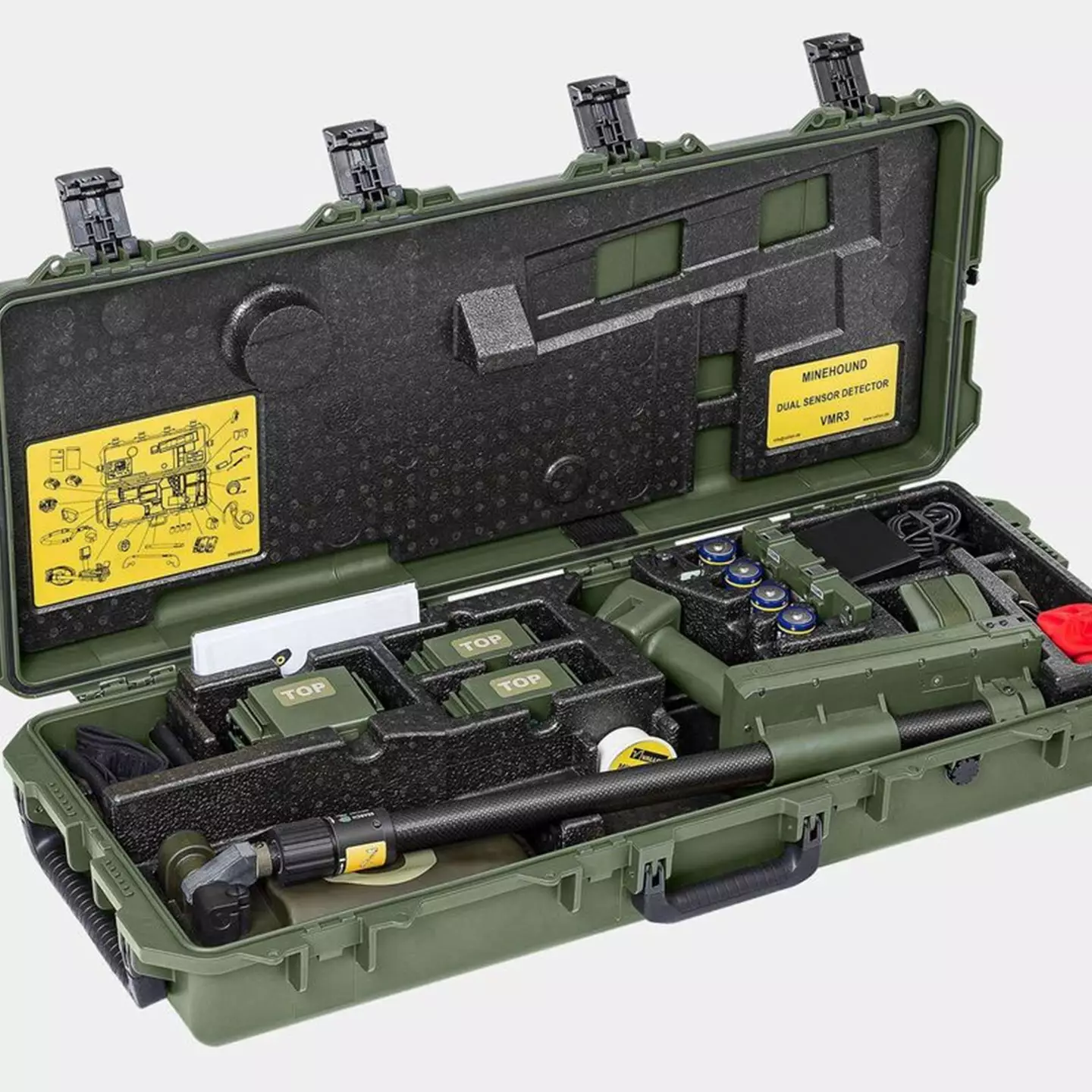

Case Dimensions

102 x 43 x 17 cm (40.15 x 16.93 x 6.70 ")

102 x 43 x 17 cm (40.15 x 16.93 x 6.70 ")

80.5 x 52 x 31 cm (31.69 x 20.47 x 12.20 ")

Detector Weight with Battery

4.0 kg (8.82 lbs)

4.2 kg (9.25 lbs)

3.7 kg (8.15 lbs)
