Minehound VMR3G – Dual-Sensor Mine Detector

The VMR3G “Minehound” dual-sensor detector is internationally proven. It is ideal for the simultaneous detection of metal and metal-free objects. This is a decisive advantage e.g. for the detection of IEDs.

    • ✔Ground Penetrating Radar and Metal Detection
    • ✔Integrated graphic display for simplified operation
    • ✔Rugged mechanical design with high-quality carbon telescoping carrying bar
    • ✔High sensitivity for high-efficiency soil compensation
  • ✔Detection of metal and metal-free objects such as improvised explosive devices (IEDs)
Click to enlarge
Chelton are a trusted partner of Vallon GmbH, providing Ground Penetrating Radar technologies and services for over 15 years. For enquiries not related to the UK market (either for end use or via UK Government Export), Chelton recommend contacting Vallon GmbH initially at the following address: [email protected].

Suitable for the following
searches

Mines12

Suited for mine detection. Thanks to maximum sensitivity, also reacts to mines with low or no metal content.

UXO

Ideal for shallow searching for all types of metal (e. g. unexploded ordnances, submunitions, etc.).

IED

Thanks to a ground-penetrating radar, it is ideal for efficiently searching for objects with low or no metal content.

The VMR3G “Minehound” dual-sensor detector is internationally proven. It is ideal for the simultaneous detection of metal and metal-free objects. This is a decisive advantage e.g. for the detection of IEDs.

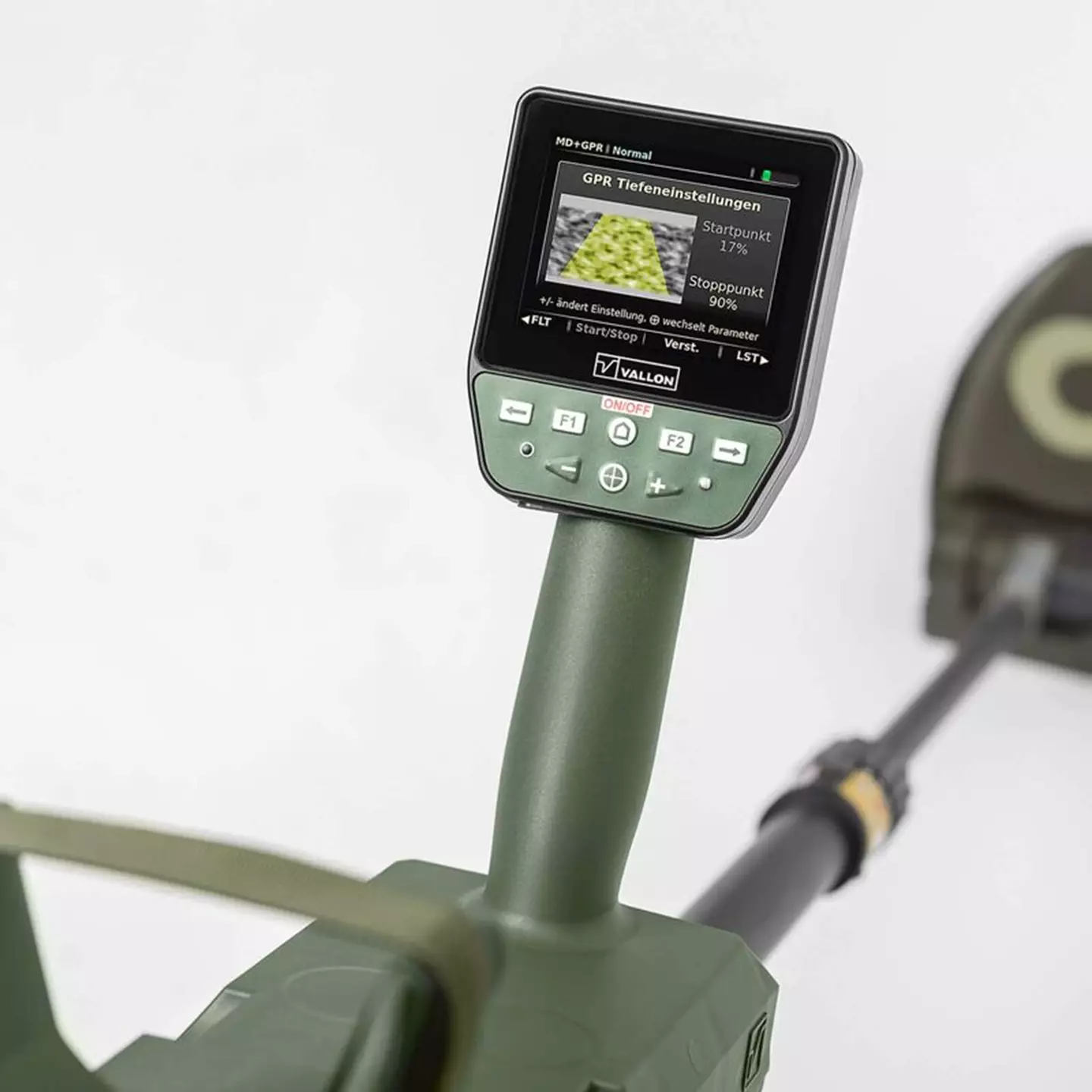

The integrated colour graphic display enables user-friendly operation and shortens the time for an initial training as well as the familiarization after a longer period of inactivity.

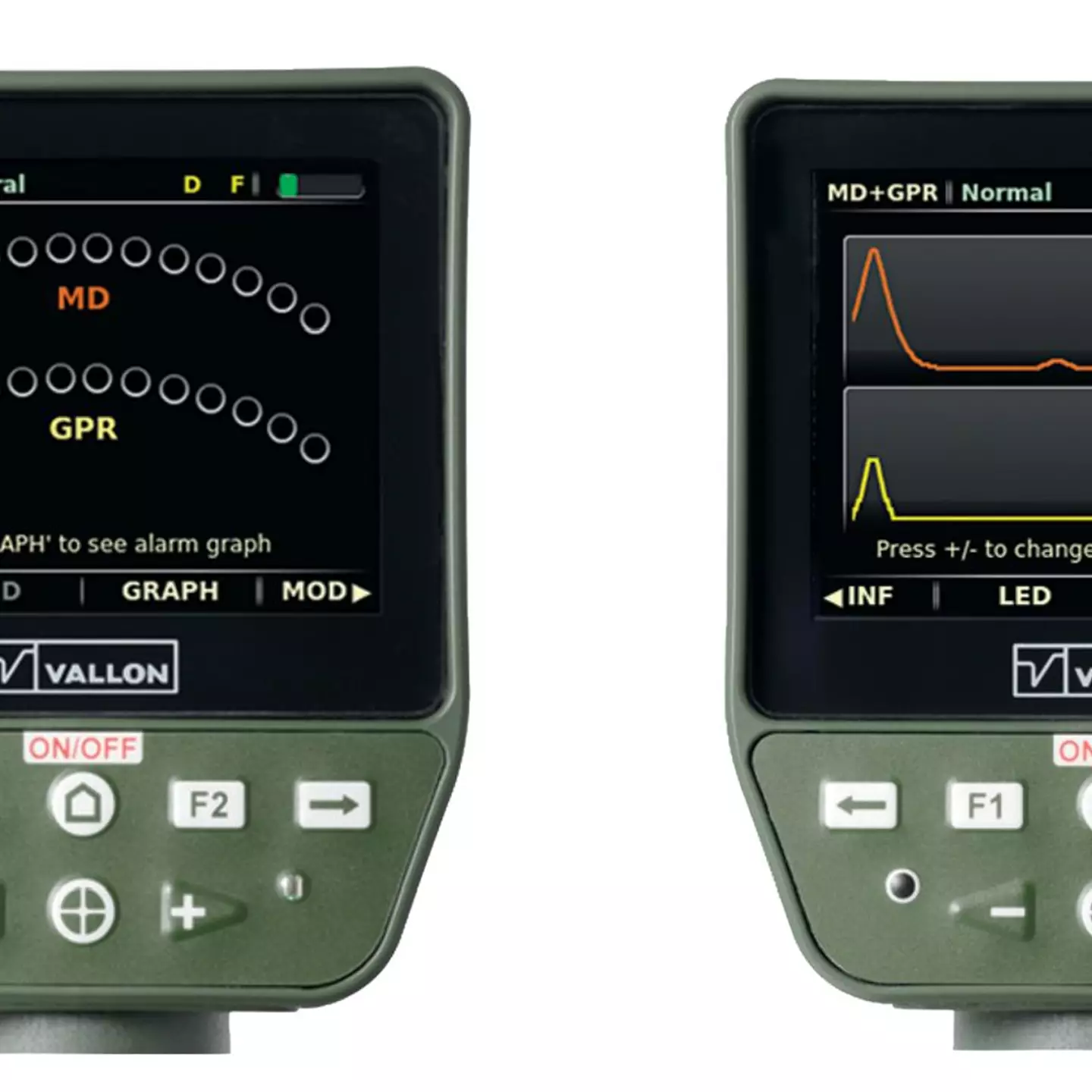

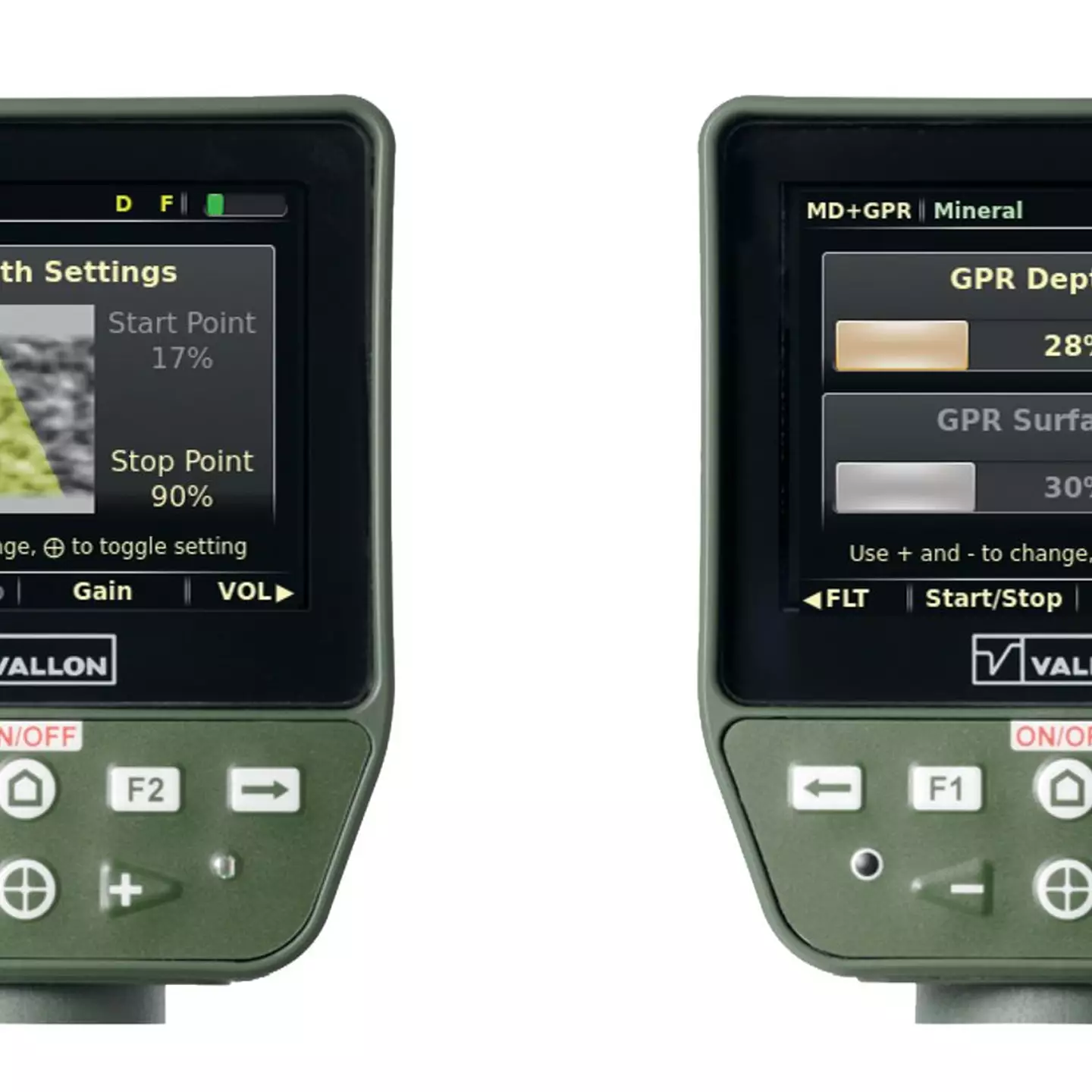

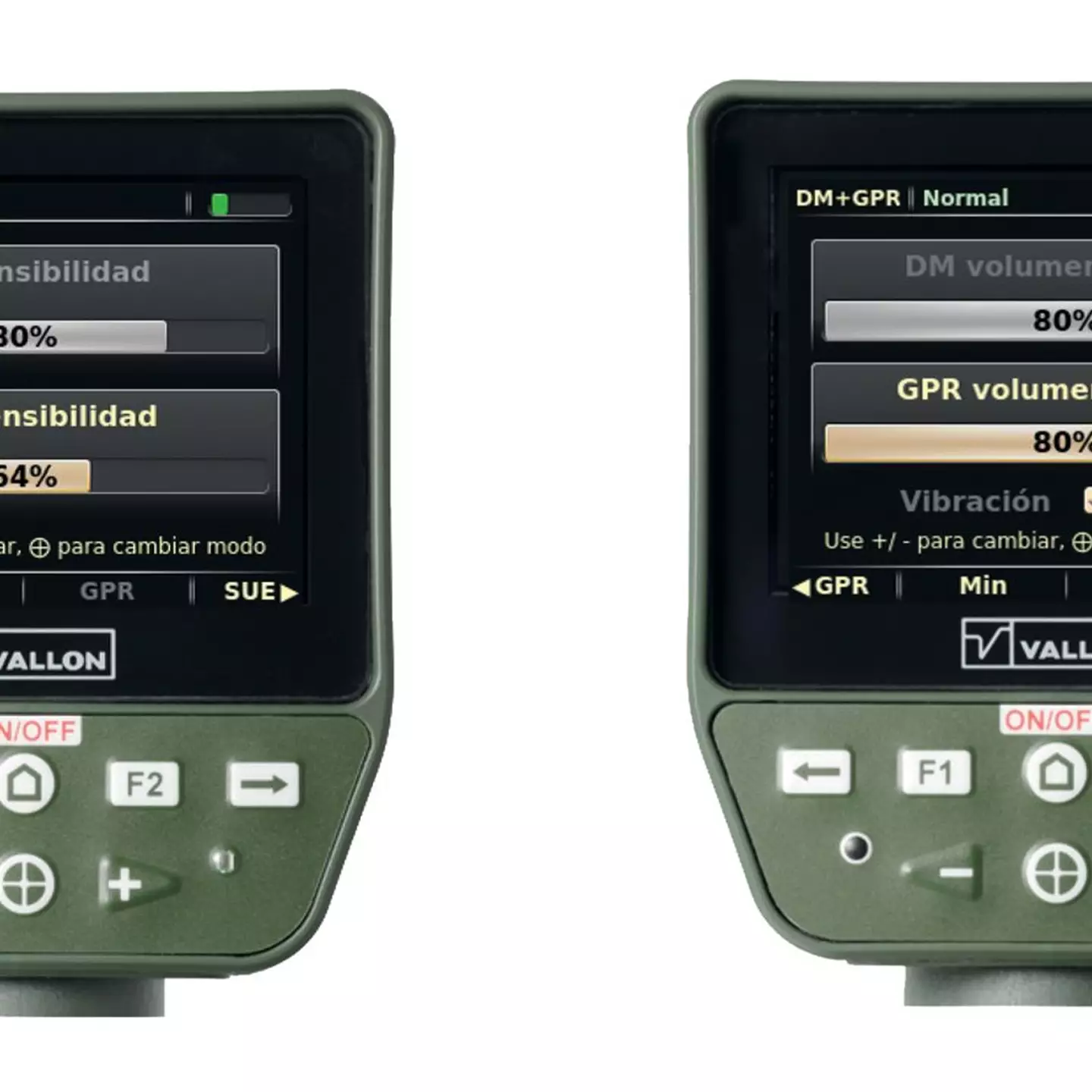

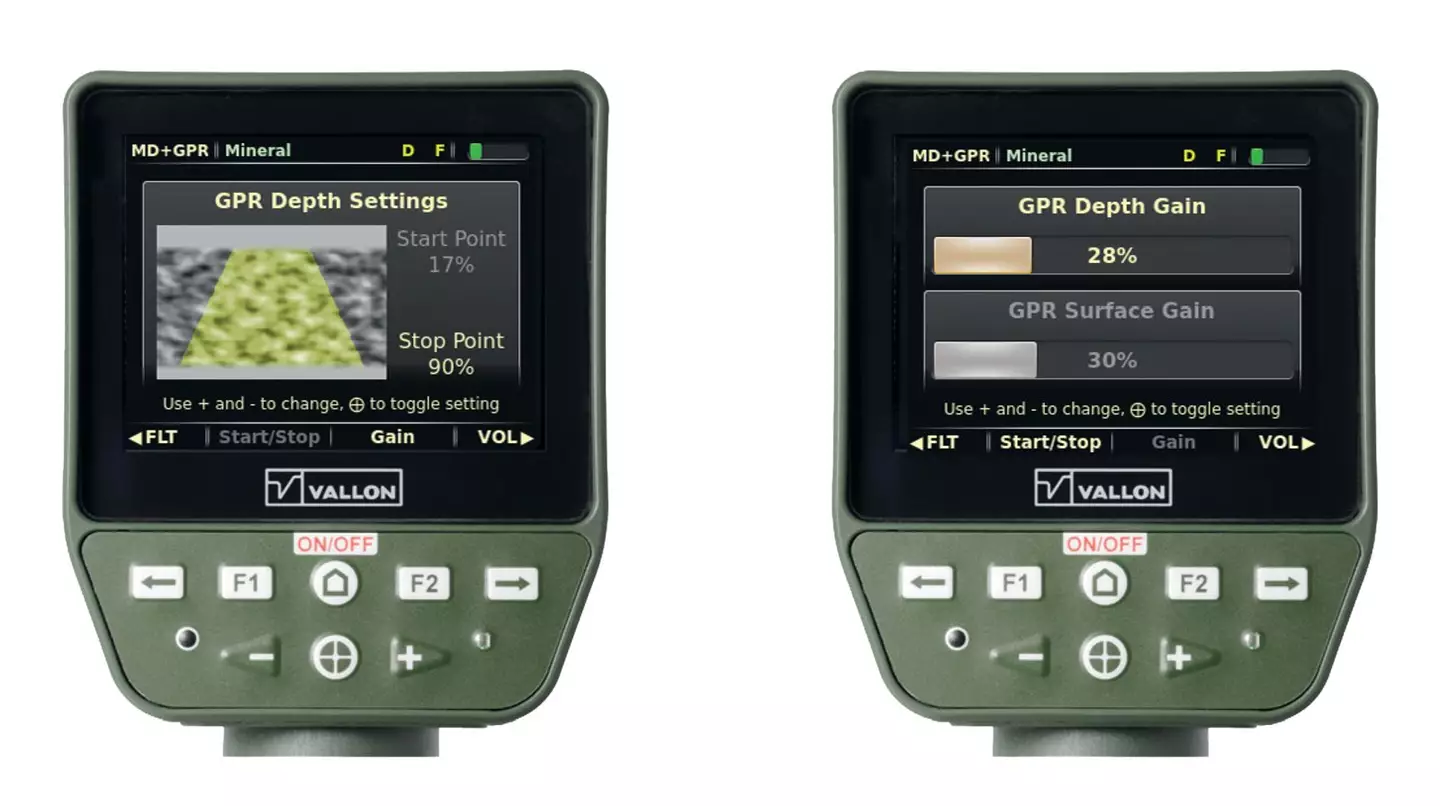

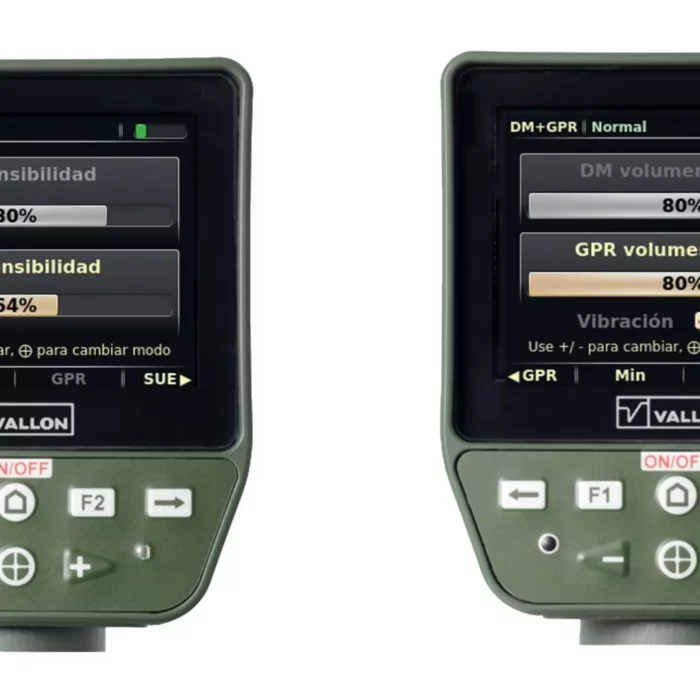

The display provides an overview of all parameters and signals of the metal detector (MD) and ground-penetrating radar (GPR). The visualization of the ground-penetrating radar alarm offers easy to read depth information on the detected object. In addition, the device settings are available in numerous languages.

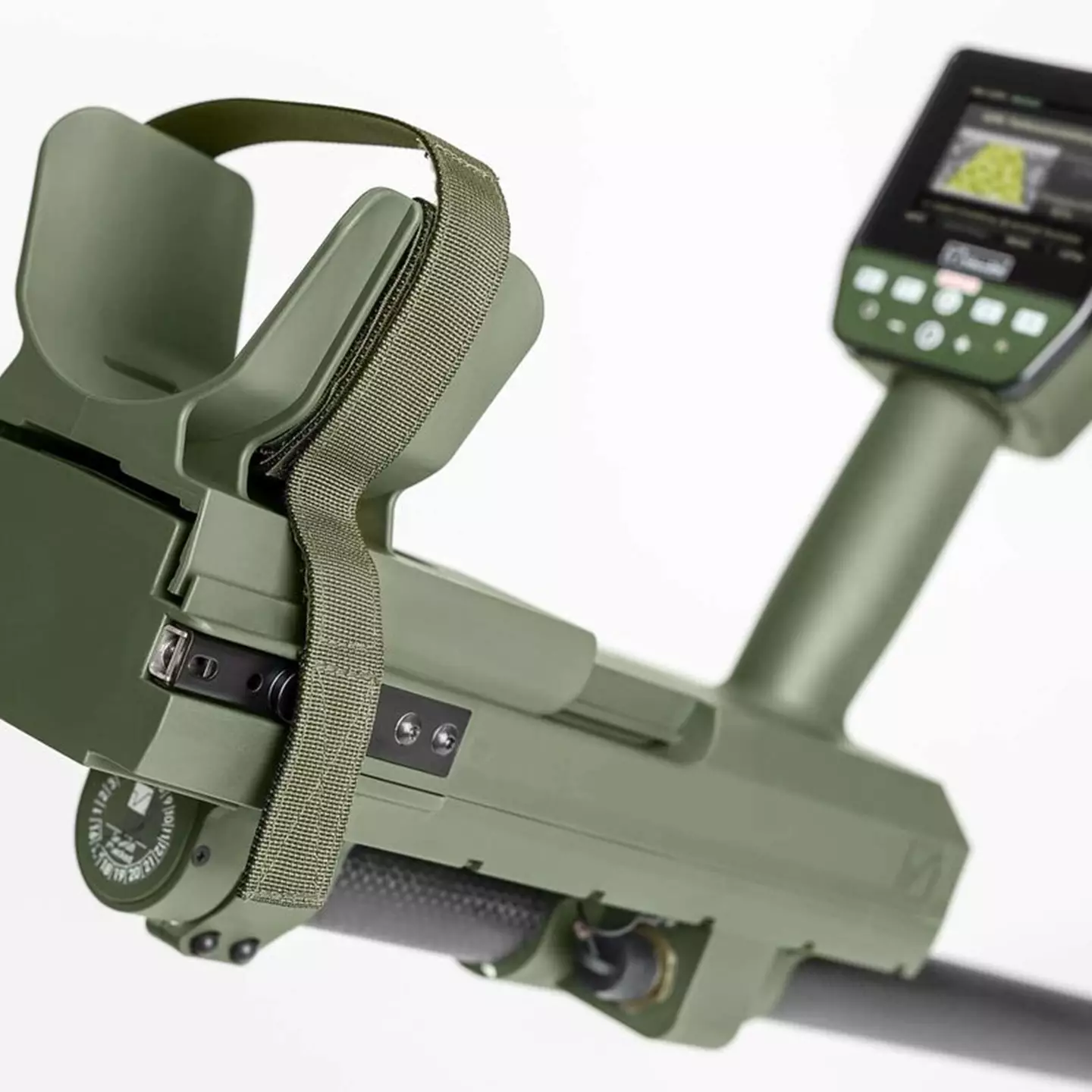

The VMR3G is also characterized by its mechanical features: The use of carbon and glass fibre-reinforced plastic makes it extremely rugged and durable.

It meets high standards for military mine clearance and humanitarian demining.

ACF Image

Specification

Metal detector (MD) and ground-penetrating radar (GPR) Sensor
Visual (graphic display)/audio/vibration Alarm Signal
7.5 hr Operating Time (LiPo)
3.5 hrs Operating Time (Alk)

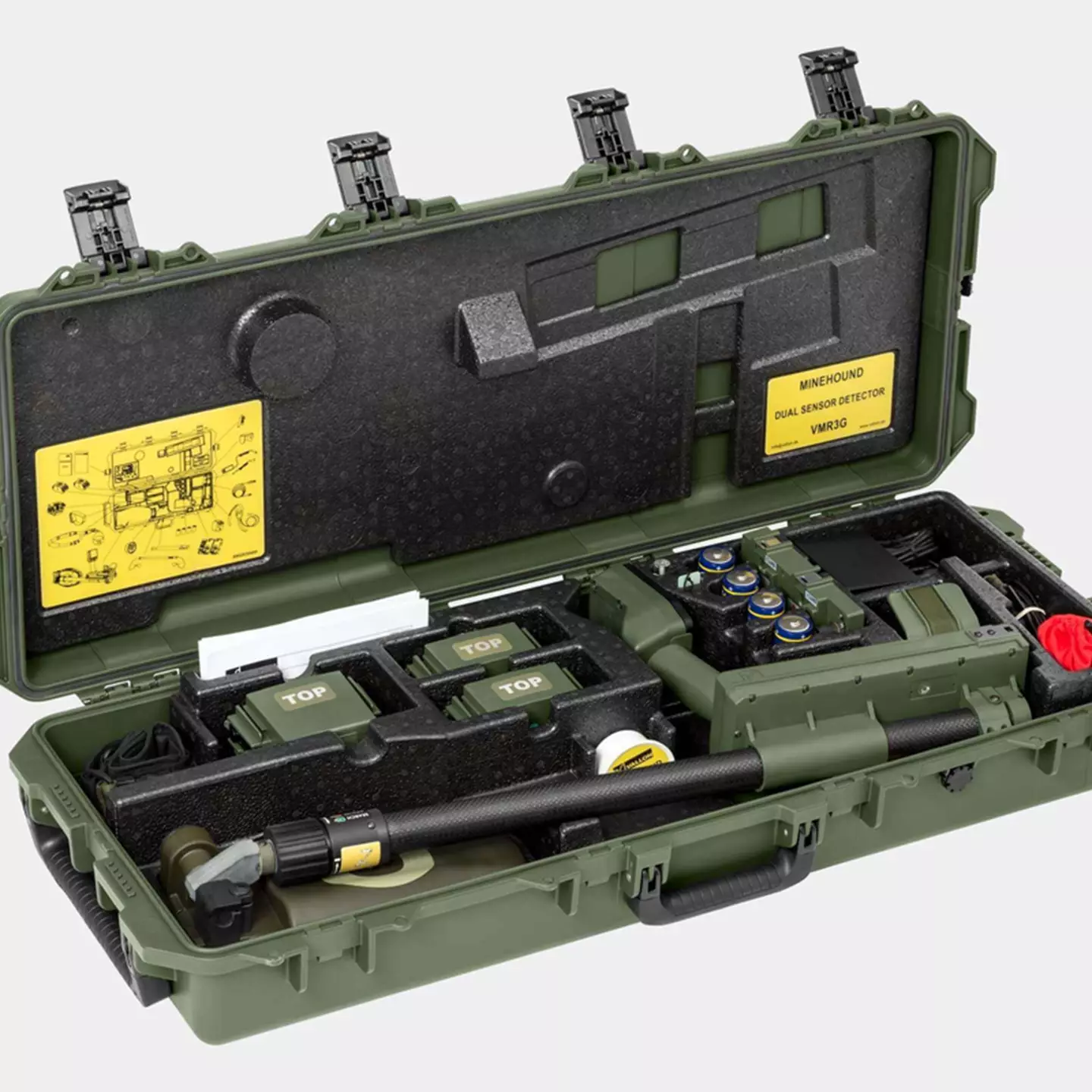

102 x 43 x 17 cm (40.15 x 16.93 x 6.70 ") Case Dimensions
31.5 x 18 cm (12.40 x 7.09 ") Head Dimensions
4.2 kg (9.25 lbs) Detector Weight with Battery
3.74 kg (8.24 lbs) Detector Weight w/out Battery
IP68, 1.5m (1hr at 20 °C) Watertight
In accordance with MIL-STD-810F / MIL-STD-461G (501.1-I, II, 502.5-I, II, 503.5, 506.5, 512.5, 514.6-C-II & C-VI, 516.6) Ambient conditions
3.74 kg (8.24 lbs) Detector Weight w/out Battery
14.8 kg (32.62 lbs) Package weight (incl. case)
