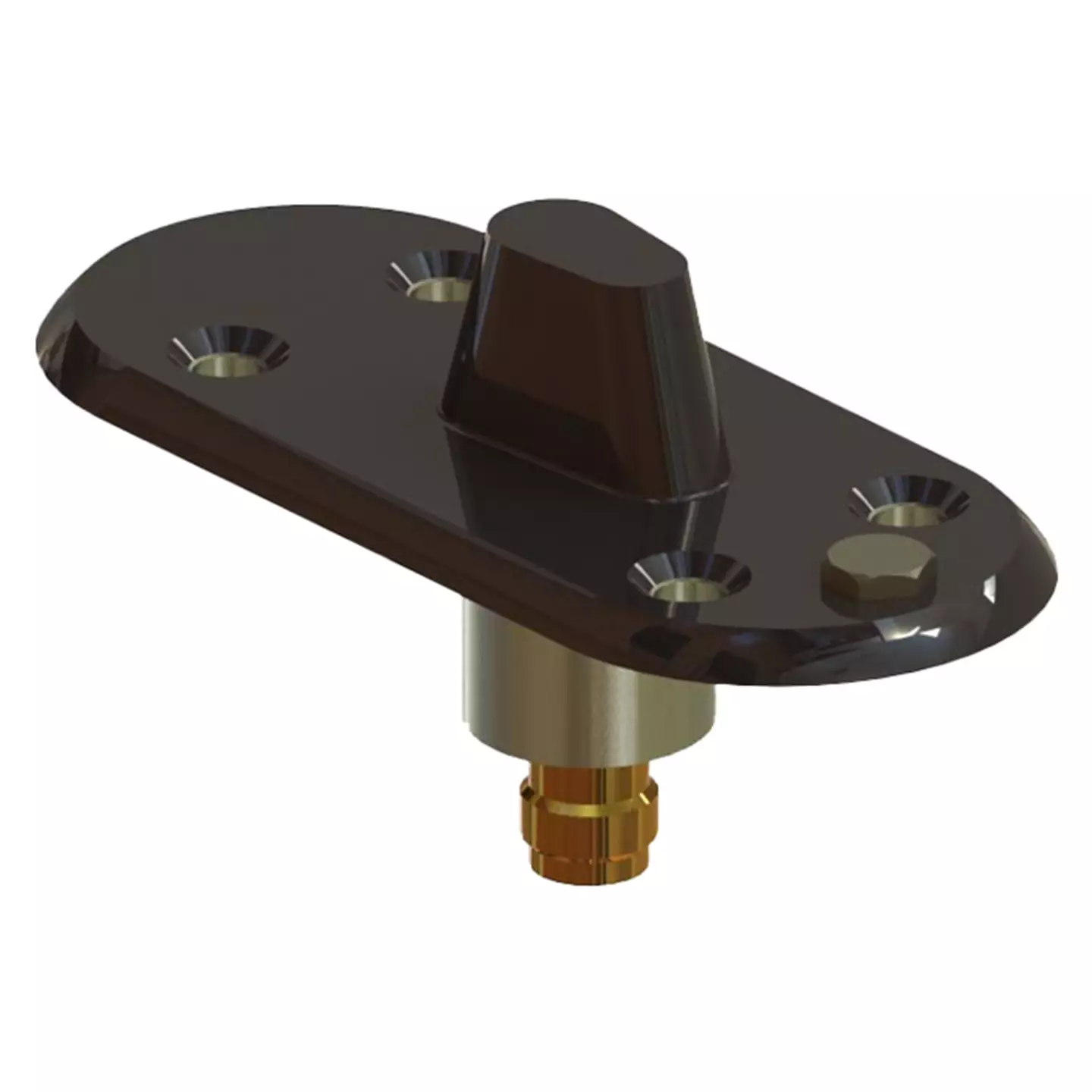

MLS Stub Antenna – 10-171

The 10-171 and 10-172 antennas have been designed to give omnidirectional and directional patterns, respectively, at aircraft Microwave Landing Systems (M.L.S.) frequencies.

  • ✔PEEK shell
  • ✔Low Profile
Click to enlarge

Specification

5000 Minimum Frequency
5100 Maximum Frequency
50 Impedence
1.5:1 Return Loss VSWR
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
100 x 44 x 22 Full Dimensions LxWxH mm
0.05 Mass kg
TNC Female Connector Type
70000 Altitude ft
55 Continuous Operating Temperature Min - C
85 Continuous Operating Temperature Max C
RTCA DO-160B, Sect 8, modified Vibration
DO-160 Standards
