Multiband Passive Antenna – 12-200

12-200 Datasheet

Multiband Passive Antenna – 12-200

Type 12-200 is a multi-band passive antenna operating over the frequency bands 30-88MHz,m 108-174MHz and 225-400MHz.

  • ✔ Multi-Band Passive
  • ✔ 50 and 100 watt variants
  • ✔ Gain at 30MHz > -24 dBi
  • ✔ High Efficiency
  • ✔ Height 376mm (14.7 inches)
  • ✔ NSN 5985-01-134-2291

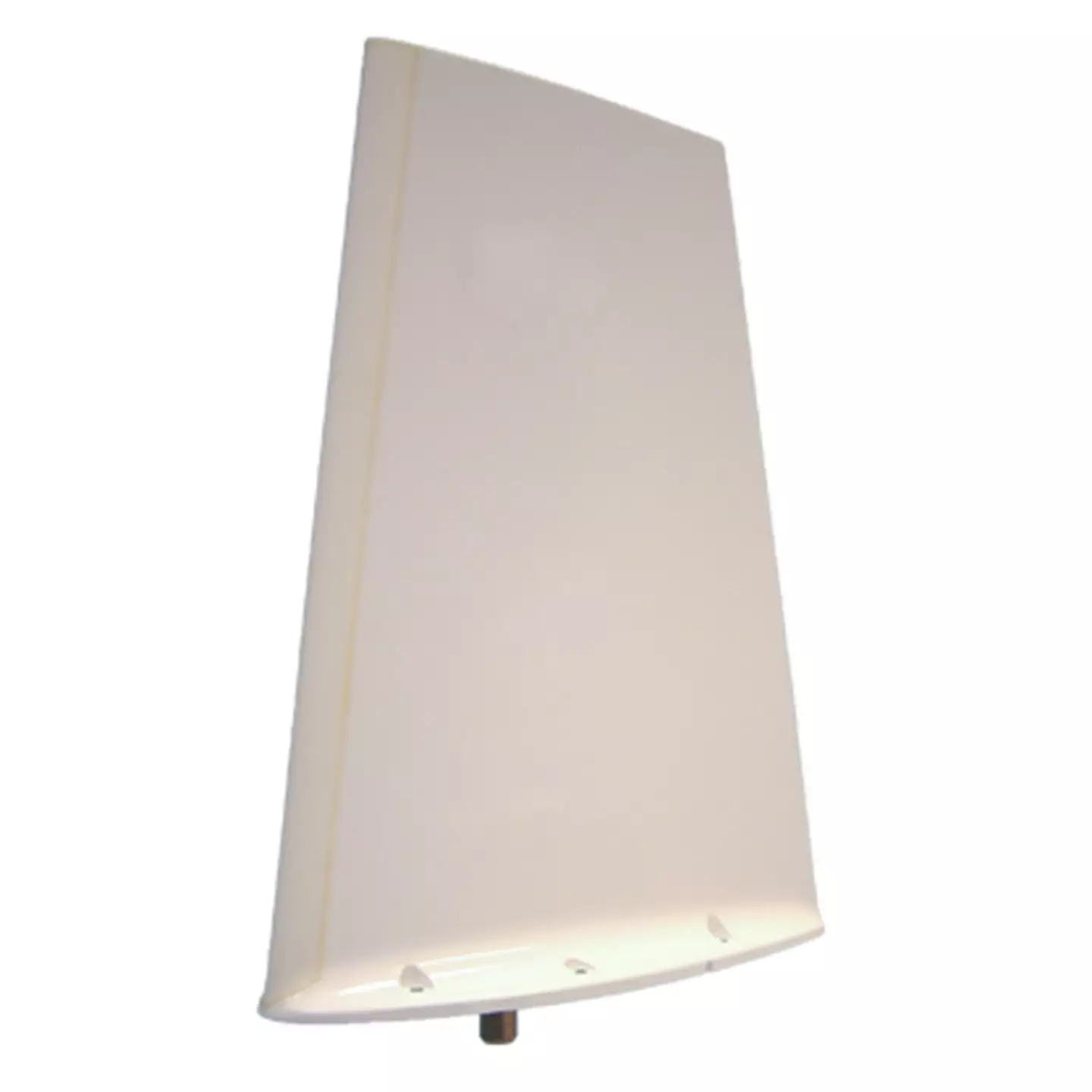

Click to enlarge

Specification

30 Minimum Frequency
400 Maximum Frequency
50 Impedence
30 - 88 MHz: <2.5:1 Return Loss VSWR
30 MHz: -24 dBi Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
Omnidirectional Radiation Pattern Elevation
100 Peak Power Watts
50 Average Power Watts
299 x 91 x 373 Full Dimensions LxWxH mm
1.7 Mass kg
N Type Female Connector Type
35000 Altitude ft
55 Continuous Operating Temperature Min - C
70 Continuous Operating Temperature Max C
RTCA DO-160C, Sect 8, Cat C Vibration
DO-160 Standards
12-200 Datasheet
