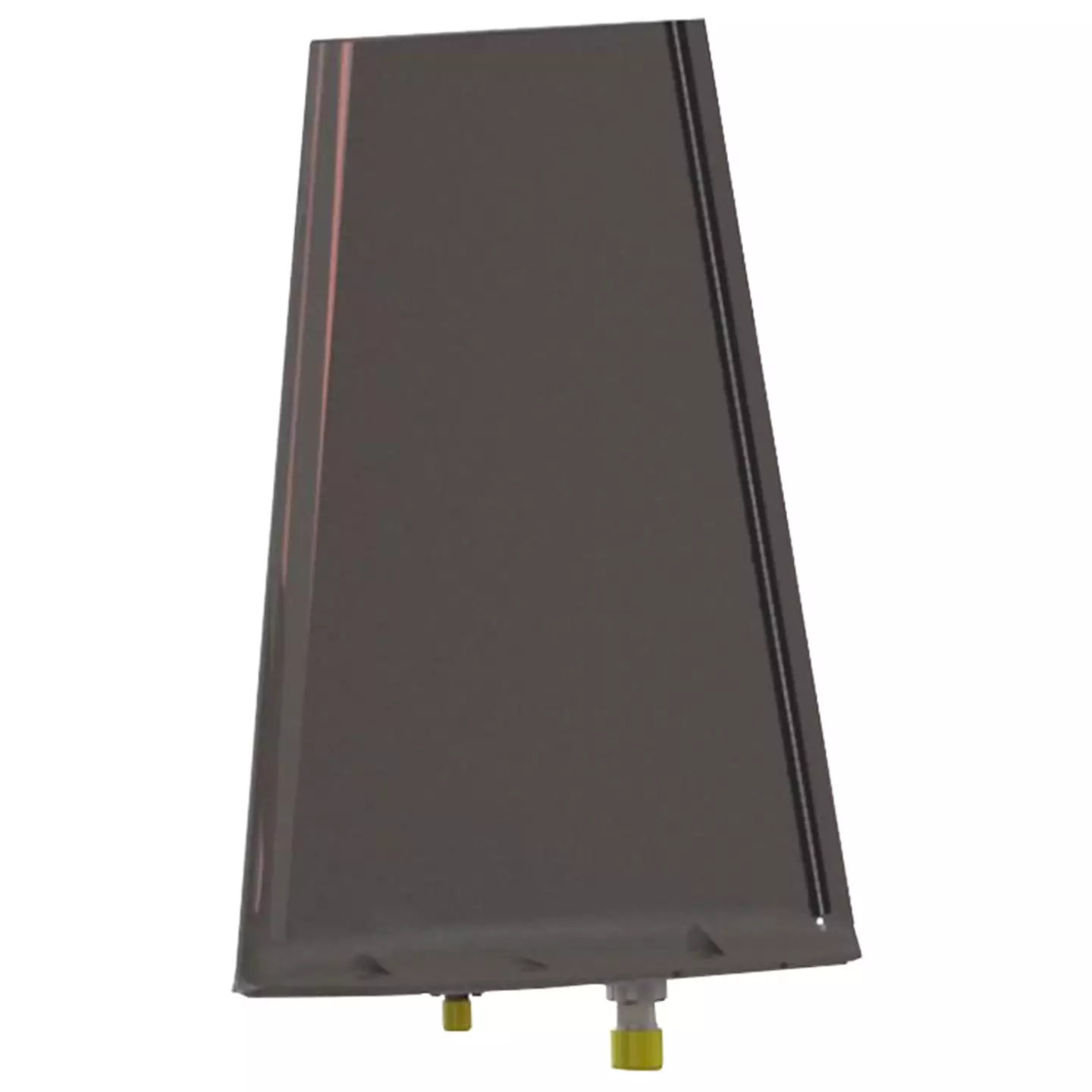

The 12-4004 is a multiband tuneable antenna designed to provide communications in the frequency range 30 to 600 MHz. The antenna is compatible with Chelton’s range of logic units that are capable of providing an interface to current fast frequency hopping radios and as a system is capable of meeting the tuning times with modes such as Havequick II and Saturn. The antenna is designed to meet the requirements of DO-186A, ED-23C and DO-253C.

✔ Compatible with freq hopping radios
✔ Meets Havequick II and Saturn standards
✔ Tunable
Click to enlarge

Specification

30 Minimum Frequency
600 Maximum Frequency
50 Impedence
Frequency (MHz) Connector Type Return Loss (dB) VSWR Return Loss VSWR
Frequency (MHz) Connector Type Gain (dBi) Gain
Vertical Polarization
2 Mass kg
TNC Female Connector Type
25000 Altitude ft
54 Continuous Operating Temperature Min - C
71 Continuous Operating Temperature Max C
12-4004 Datasheet
