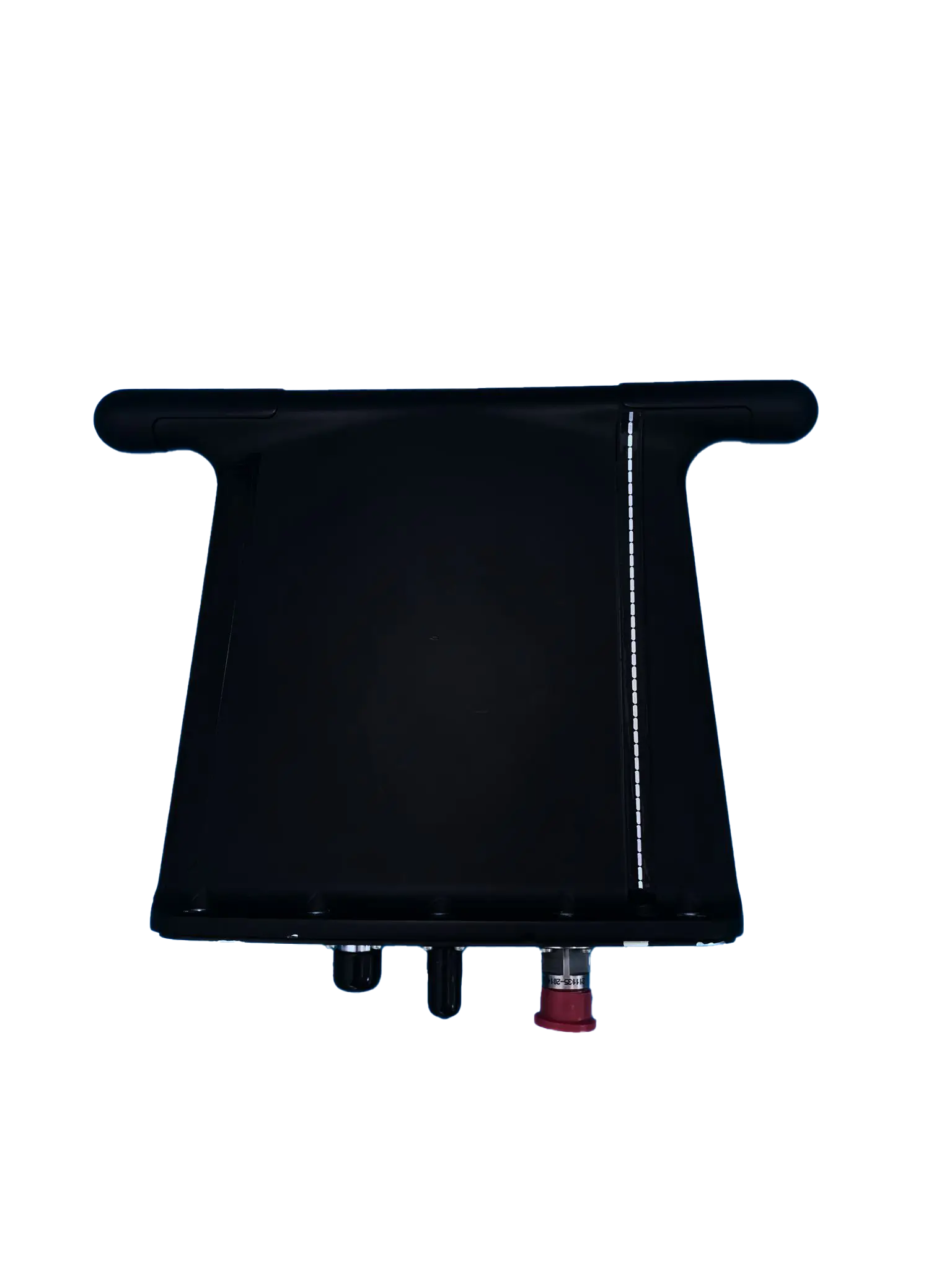

Multiband Tuneable Antenna – 12-5006
Multiband Tuneable Antenna – 12-5006
The 12-5006 is a multiband tuneable antenna designed to provide communications in the 30-600 MHz and 960-1220 MHz range.
The antenna is compatible with Chelton’s range of logic units which are capable of providing an interface to current fast frequency hopping radios and as a system, is capable of meeting the tuning times with modes such as Havequick II and Saturn.
- ✔Multiband tuneable antenna
- ✔Operates on two separate frequency bands
- ✔Compatible with Havequick II and Saturn
Specification
30MHz
Minimum Frequency
1220MHz
Maximum Frequency
V/UHF - 50W CW Max
L-Band - 1.5 kW peak with 0.4% Duty Cycle
Power
50
Impedance
30 - 88 MHz: ≤2.5:1
VSWR
30MHz: -15.5dBi
Gain
Vertical
Polarisation
Omnidirectional
Radiation
315 x 72 x 234.1mm
Dimensions (LxWxH)
1.59
Mass kg
V/UHF - TNC
L-Band - N
DC - D38999
Connector
Air
Platform(s)
MIL-STD-810G
DO160G
Standard
54
Continuous Operating Temperature Min - C
71
Continuous Operating Temperature Max C
35000ft
Altitude
MIL-STD-810G w/Ch 1, Method 514.7,
Procedure I DO160G Section 8 Cat R
Vibration
