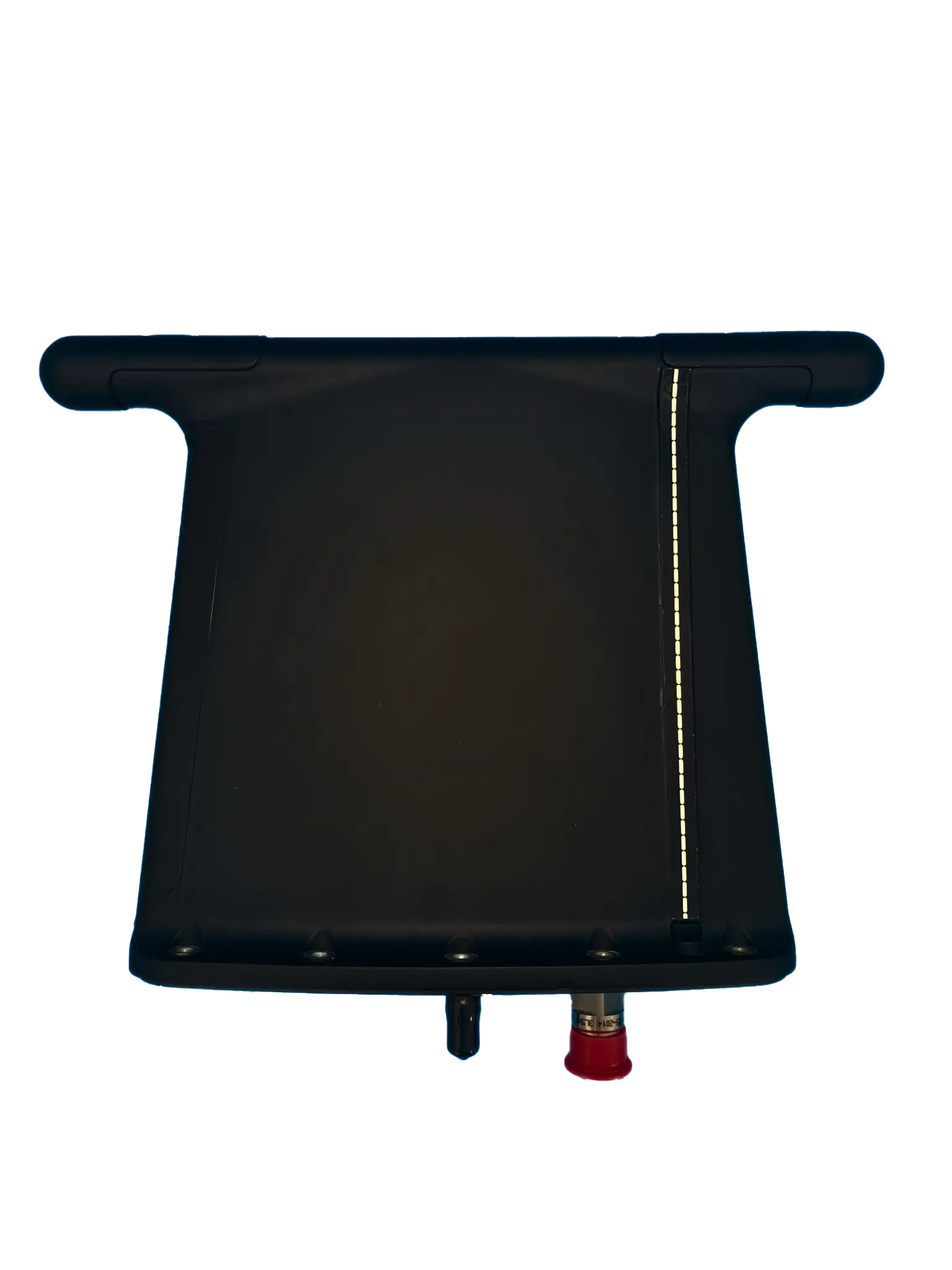

The 12-5008 is a multiband tuneable antenna designed to provide communications in the frequency ranges 30 MHz to 512 MHz and 760 to 960 MHz.
The antenna is compatible with Chelton’s range of logic units that are capable of providing an interface to current fast frequency hopping radios and as a system is capable of meeting the tuning times with modes such as Havequick II and Saturn.
- ✔Multiband tuneable antenna
- ✔Compatible with RT-5000 & RT-7000 Radio
Specification
30MHz
Minimum Frequency
960MHz
Maximum Frequency
30 - 512MHz - 50W CW Max
760 - 960MHz - 15W CW Max
Power
50
Impedance
30 - 88 MHz: ≤2.5:1
VSWR
30MHz: -15.5dBi
Gain
Vertical
Polarisation
Omnidirectional
Radiation
315 x 72 x 234.1mm
Dimensions (LxWxH)
1.59
Mass kg
V/UHF - TNC
DC - D38999
Connector
Air
Platform(s)
MIL-STD-810G
DO160G
Standard
54
Continuous Operating Temperature Min - C
71
Continuous Operating Temperature Max C
35000ft
Altitude
MIL-STD-810G w/Ch 1, Method 514.7,
Procedure I DO160G Section 8 Cat R
Vibration
