Passive VHF Blade, 100-200 MHz with anti-static protection – 20-200-5/AS

20-200-5/AS Datasheet

Passive VHF Blade, 100-200 MHz with anti-static protection – 20-200-5/AS

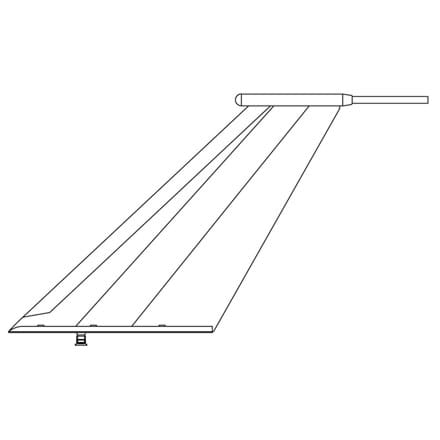

The 20-200-5 is a passive, VHF blade intended for use over the civil and military communications band of 100-200 MHz. The 20-200-5/AS incorporates special features to minimise the effects of precipitation static. In particular, the top of the antenna blade contains a carbon-fibre discharge rod of high resistance, which is connected to ground via an overall high resistivity paint finish applied over the entire surface of the blade.

  • ✔ Standard aircraft VHF mount
  • ✔ Foam filled for high durability
  • ✔ Special features to minimise static precipitation

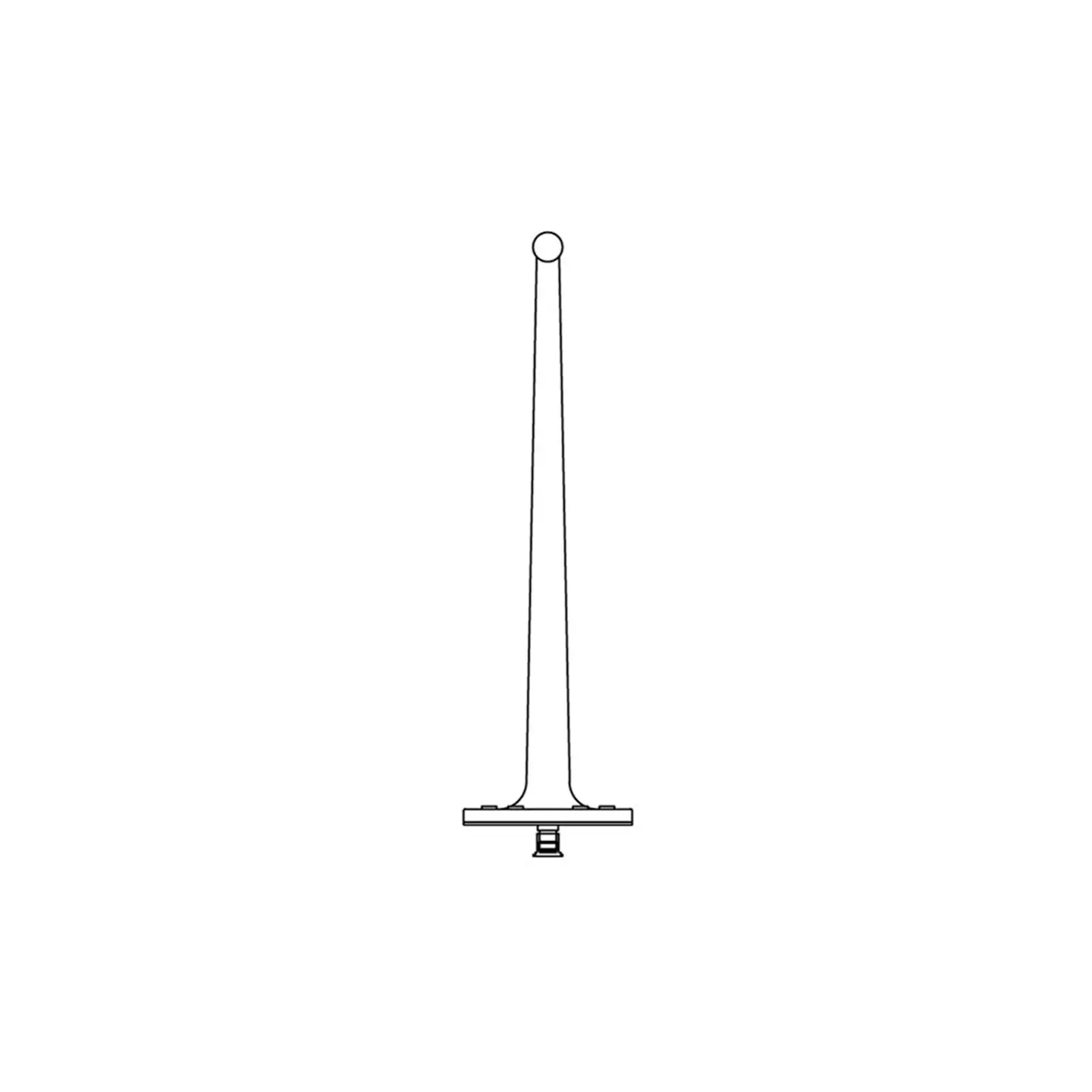

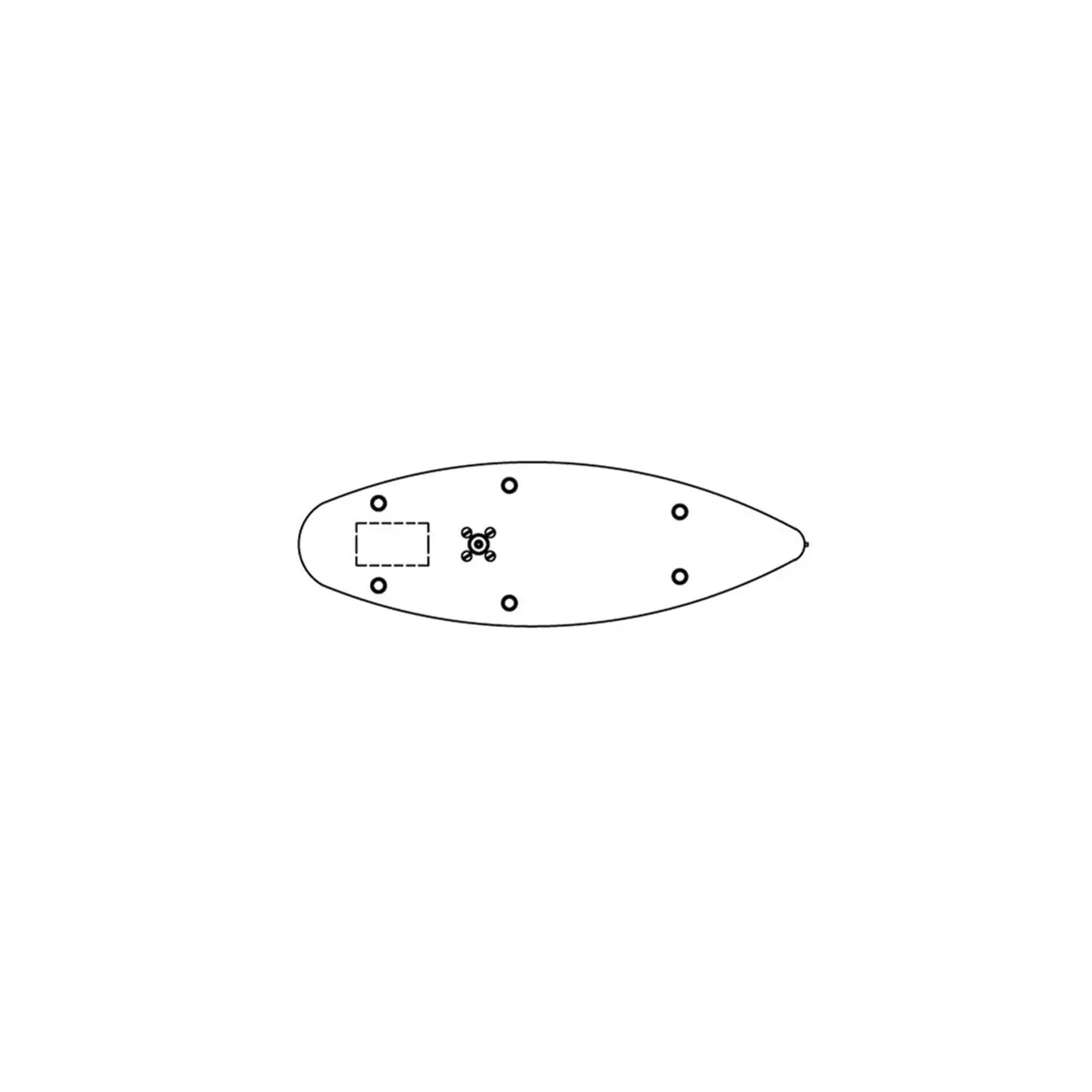

Click to enlarge

Specification

100 Minimum Frequency
200 Maximum Frequency
50 Impedence
100-117 MHz ≤ 2. 5:1 118-152 MHz ≤ 2.25:1 153-162 MHz ≤ 2. 5:1 163-200 MHz ≤ 3. 0:1 Return Loss VSWR
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
50W Peak Power Watts
50W Average Power Watts
88.9 x 552.5 x 320 Full Dimensions LxWxH mm
1.4 Mass kg
TNC Female Connector Type
BS 3G 100, Part 2, Section 3:3.1, Category 4 Vibration
20-200-5/AS Datasheet
