TETRA Whip Antenna – 21-174

21-174 Datasheet

TETRA Whip Antenna – 21-174

The 21-174 is a UHF whip antenna designed to operate over the frequency ranges 380-400 MHz and 410-430 MHz in general subsonic airborne applications, including Terrestrial Trunked Radio (TETRA) use.

  • ✔ Airborne TETRA use
  • ✔ Lightweight Whip.
  • ✔ Helicopter (rotary wing) use

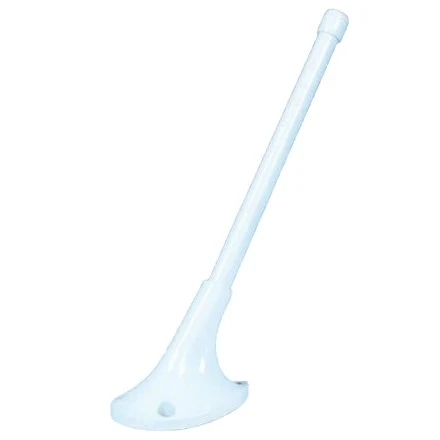

Click to enlarge

Specification

380 Minimum Frequency
430 Maximum Frequency
50 Impedence
2:1 max Return Loss VSWR
≤ +3 dBi Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
10 Peak Power Watts
10 Average Power Watts
155 x 53 x 207 Full Dimensions LxWxH mm
0.19 Mass kg
TNC Female Connector Type
RTCA/DO-160C, Sec 8, Cats C, L, M & Y Vibration
DO-160C Standard
