Top-Loaded Tuneable Blade Antenna – 12-190-111G

Top-Loaded Tuneable Blade Antenna – 12-190-111G

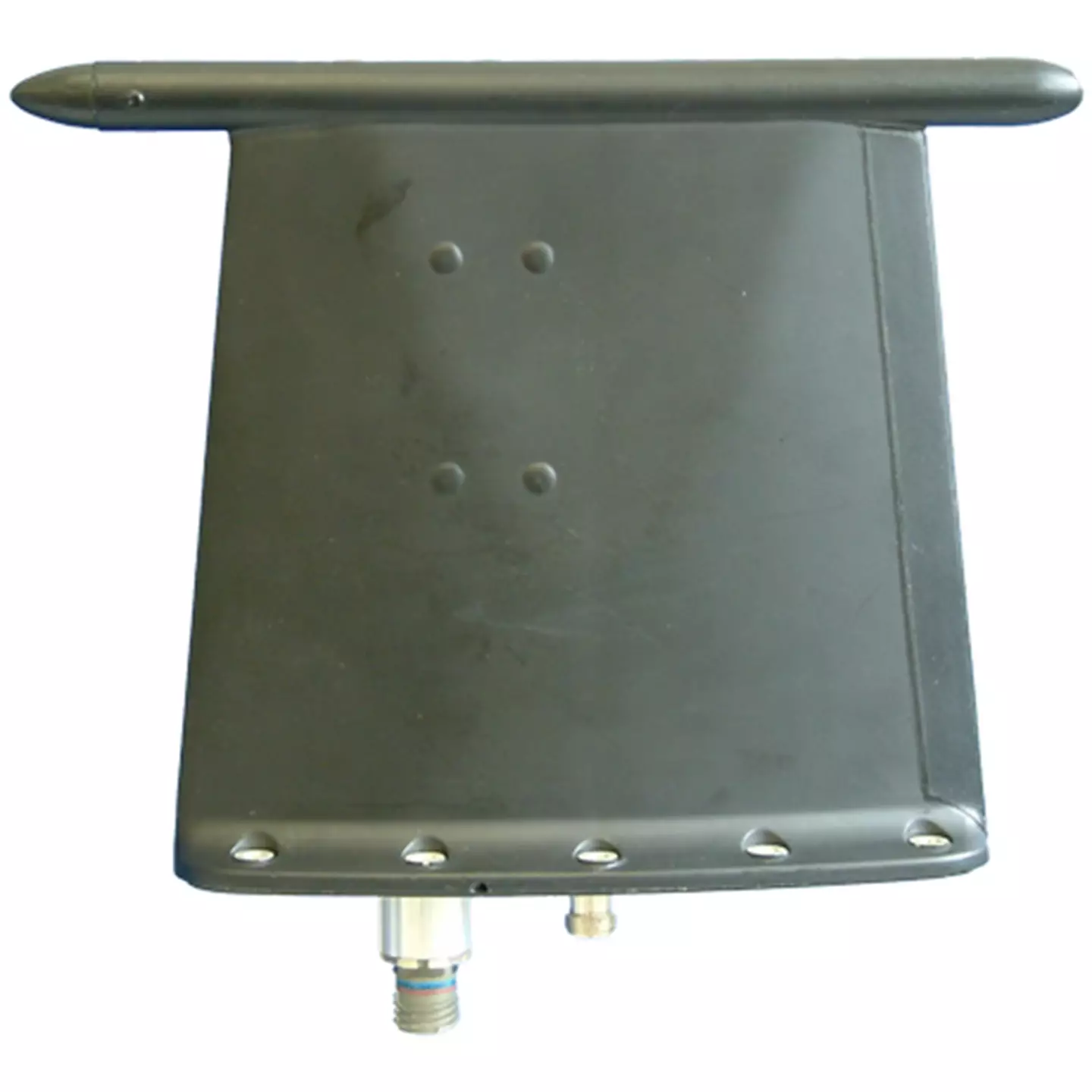

The 12-190-111G is a top-loaded tuneable blade antenna, which with the appropriate logic converter unit, provides a high gain antenna system with in a small physical size.

  • ✔ Top-loading gives gain of -15dBi at 30MHz for 9 inches height
Click to enlarge

Specification

30 Minimum Frequency
400 Maximum Frequency
50 Impedence
< 2.5:1 30-88 MHz Return Loss VSWR
30 MHz > -15dBi Gain
Vertical Polarization
300 x 70 x 231 Full Dimensions LxWxH mm
1.35 Mass kg
RF: N Female Connector Type
45000 Altitude ft
54 Continuous Operating Temperature Min - C
71 Continuous Operating Temperature Max C
MIL-T-5422, Para 4.2 Proc I curve IIIb of MIL-T-5400 Vibration
