Tri-Band ELT Blade Antenna - 16-21-406

Tri-Band ELT Blade Antenna – 16-21-406

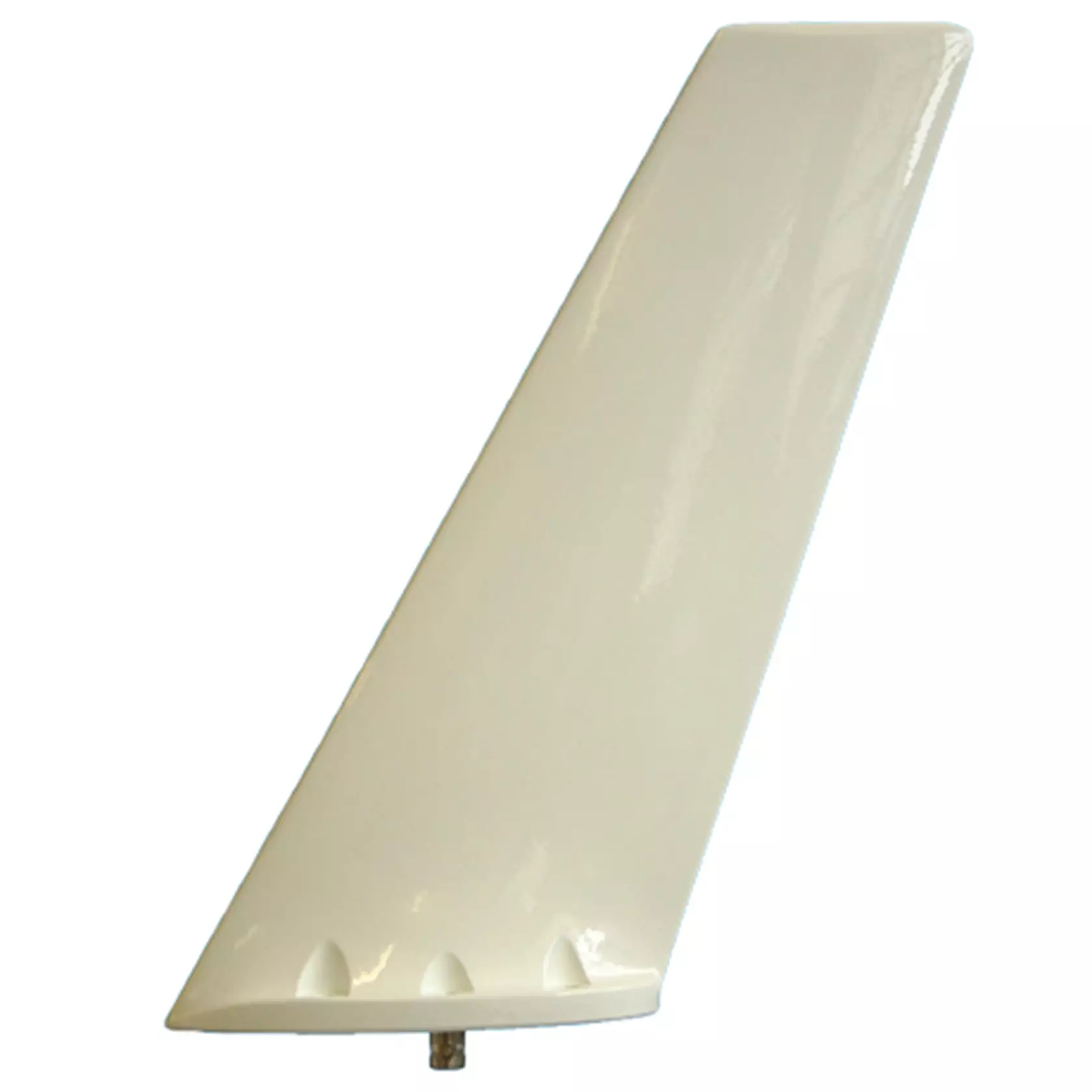

Type 16-21-406 is a tri-band Emergency Locator Transmitter (ELT) antenna.

Specification

121 Minimum Frequency

408 Maximum Frequency

50 Impedence

121.5 MHz: <1.75:1 Return Loss VSWR

+3 dBi (minimum) Gain

Vertical Plarization

Omnidirectional Radiation Pattern Azimuth

5 Peak Power Watts

5 Average Power Watts

221 x 52 x 257 Full Dimensions LxWxH mm

0.36 Mass kg

BNC Type Female Connector Type

35000 Altitude ft

55 Continuous Operating Temperature Min - C

70 Continuous Operating Temperature Max C

RTCA DO-160C, Sect 8, Curve C Vibration

DO-160 Standards
