Tri-band ELT Dual Port Blade Antenna – 16-22-406

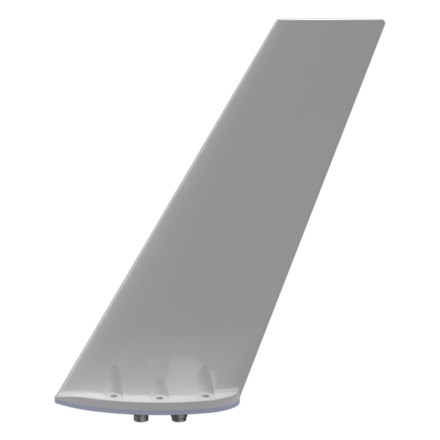

The 16-22-406 is a two port, three band high efficiency ELT blade antenna for use in airborne applications. One port operates at 121.5 and 243MHz and the other port at 243MHz. The antenna comprises two separate radiating elements each reactively matched to achieve optimum impednace and radiation characteristics.

    • ✔ Multi-Band
    • ✔ Dual port
    • ✔ Aerodynamic
    • ✔ Rugged
    • ✔ Lightweight

>

Click to enlarge

Specification

121.5 Minimum Frequency
406 Maximum Frequency
50 Impedence
121.5: ≤1.75:1; Return Loss VSWR
>+1dBi at 121.5MHz Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
5 Peak Power Watts
5 Average Power Watts
221 x 52 x 257 Full Dimensions LxWxH mm
0.4 Mass kg
BNC Female (121.5 and 243MHz) Connector Type
35000 Altitude ft
55 Continuous Operating Temperature Min - C
70 Continuous Operating Temperature Max C
RTCA DO-160C, Sect 8, Curve C Vibration
DO-160 Standards
16-22-406 Datasheet
