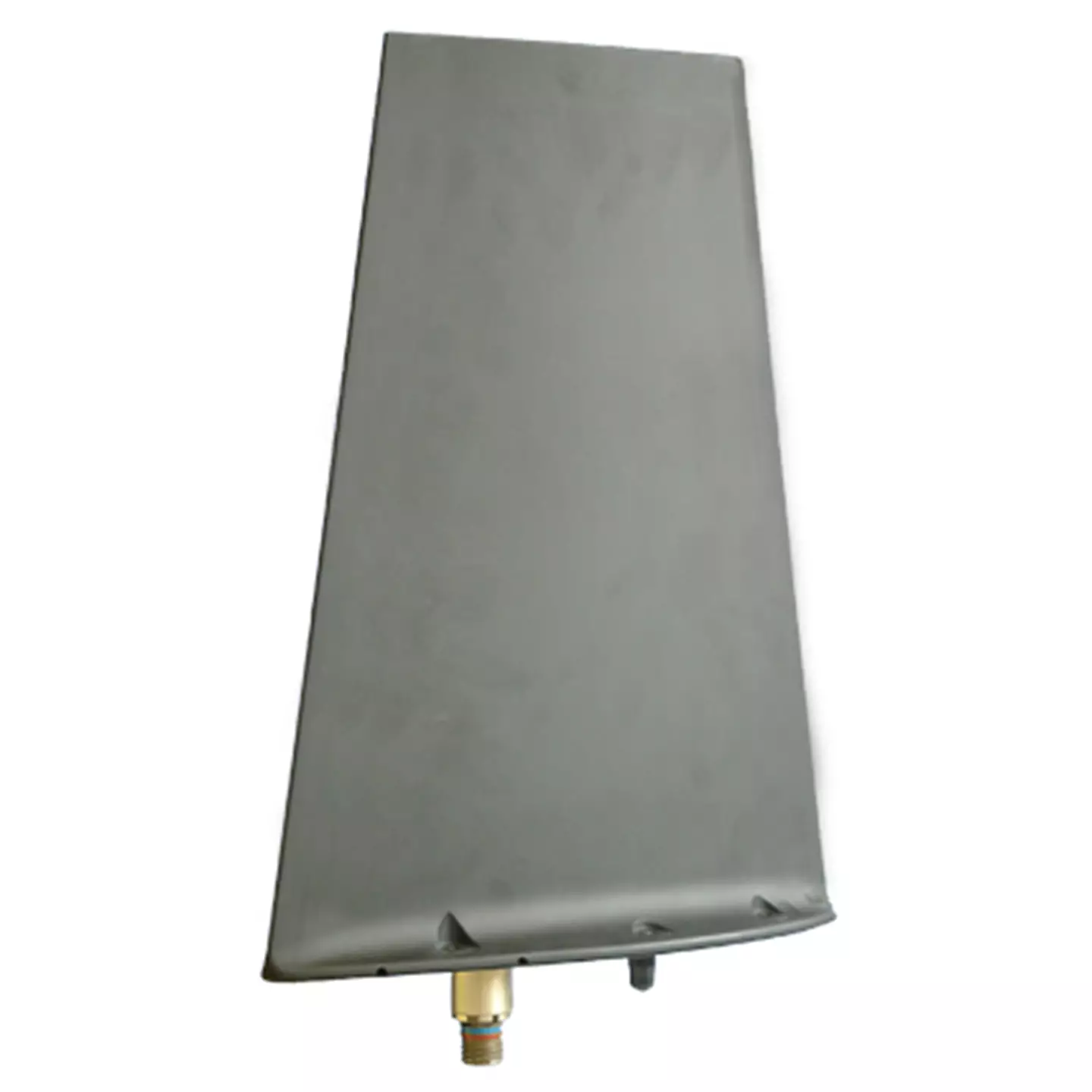

Tuneable Blade Antenna – 12-136

The 12-136 is a tuneable blade antenna designed to operate over the airborne V/UHF communications band 30-400MHz. It is suitable for use with compatible Logic Control Units, such as Chelton Type 7-151/7 and 7-171/7.

  • ✔ Tuneable Blade
  • ✔ Height 409mm (16.1 inches)
  • ✔Gain at 30MHz > -12 dBi
Click to enlarge

Specification

30 Minimum Frequency
400 Maximum Frequency
50 Impedence
30 - 88 MHz: <2.5:1 Return Loss VSWR
30 MHz: -12 dBi Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
23 Average Power Watts
301 x 91 x 409 Full Dimensions LxWxH mm
2 Mass kg
25000 Altitude ft
54 Continuous Operating Temperature Min - C
70 Continuous Operating Temperature Max C
MIL-STD-810E, Method 514.4, Proc I, Cat 6 Vibration
MIL-STD-810E Standards
