Tuneable VHF Blade Antenna – 12-437-1
Tuneable VHF Blade Antenna – 12-437-1

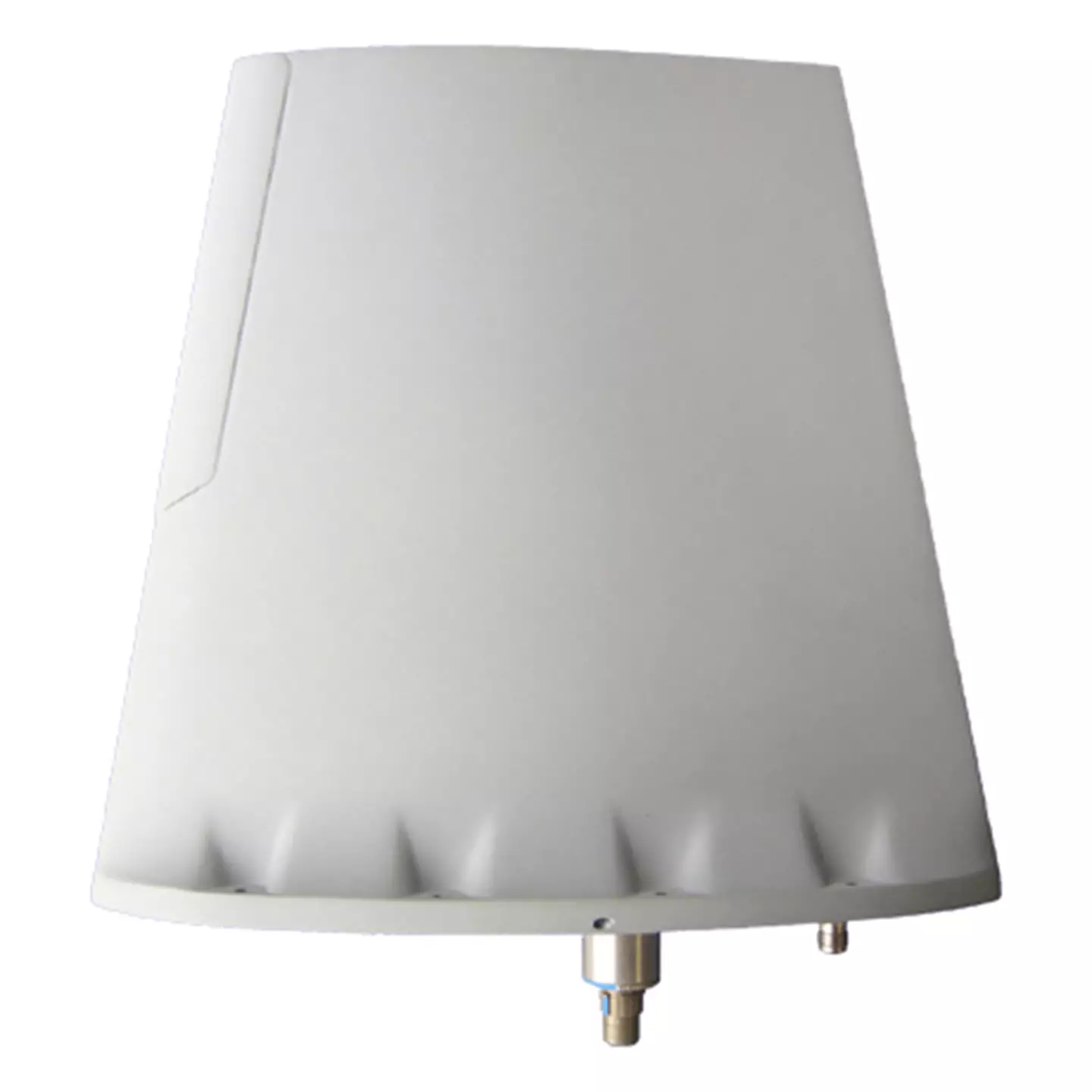

The antenna is configured as a broadband tuneable device comprising capacitive top loading and a series of P.I.N. diode switched series inductors capable of tuning over the band 30-174MHz.
- ✔ Dual-Band VHF Tuneable
- ✔ Gain ≤ -9dBi at 30MHz
- ✔ Height 305mm (12 inches)
- ✔ Stainless steel LE
Specification
30
Minimum Frequency
174
Maximum Frequency
50
Impedence
30-88MHz: 2.5:1 max
Return Loss VSWR
30MHz ≤ -9dBi
Gain
Vertical
Polarization
Omnidirectional
Radiation Pattern Azimuth
20
Average Power Watts
318 x 110 x 305
Full Dimensions LxWxH mm
2.5
Mass kg
RF: TNC Female
Connector Type
30000
Altitude ft
MIL-STD-810C Method 514 Proc 1 (Fig 514.2-2 Curve C)
Vibration
MIL-STD-810C
Standards
