Type 7-376 Diplexer

Type 7-376 Datasheet

Type 7-376 Diplexer

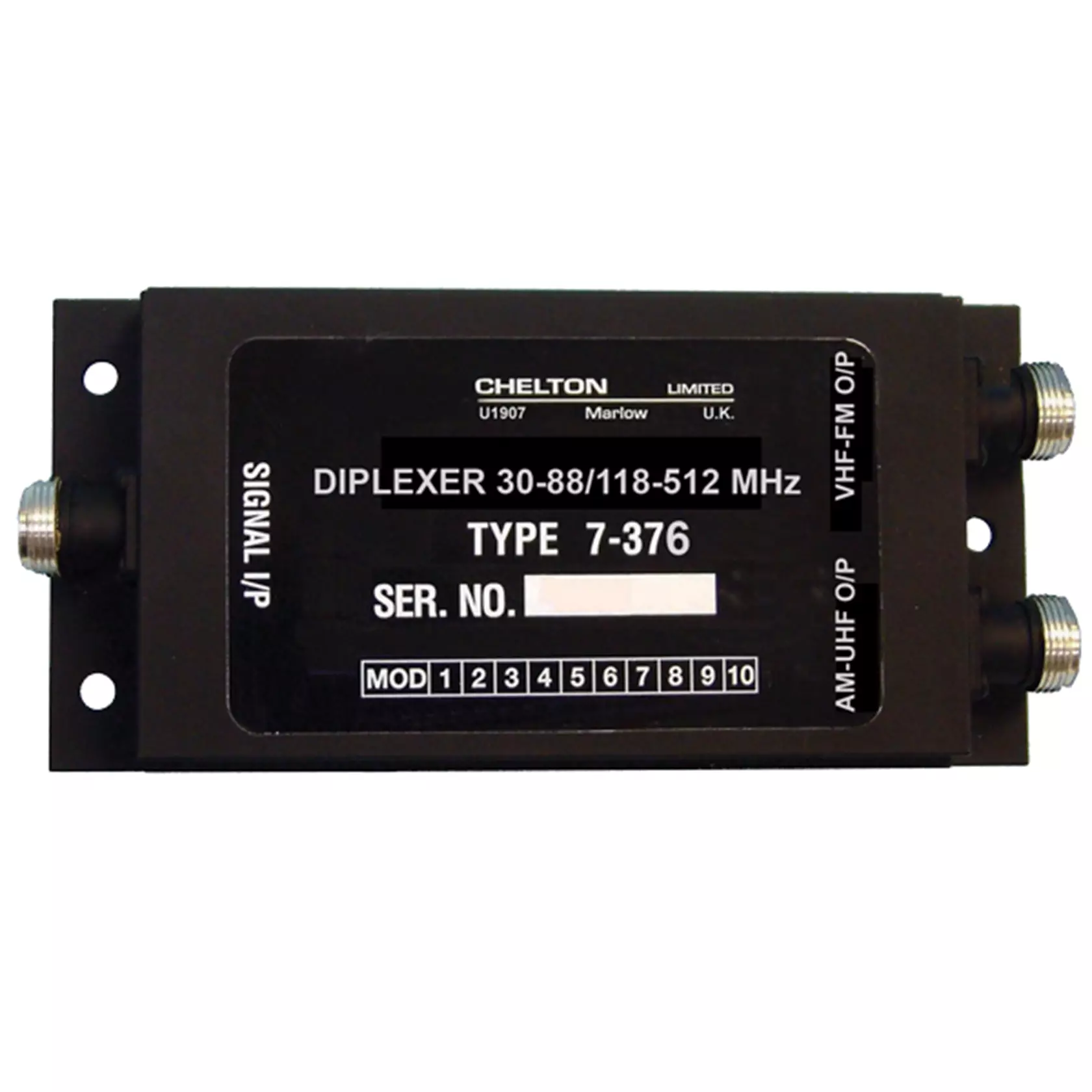

The 7-376 is a VHF FM/VHF AM & UHF diplexer that operates over the frequency ranges 30 to 88 MHz and 118 to 512 MHz. It is intended for use in general airborne applications.

  • ✔ allows two different devices to share a common communication channel using frequency-domain multiplexing
Click to enlarge

Specification

30 Minimum Frequency
512 Maximum Frequency
50 Impedence
<1.75:1 Return Loss VSWR
50 Peak Power Watts
50 Average Power Watts
160.5 x 78 x 25 Full Dimensions LxWxH mm
0.5 Mass kg
N Female Connector Type
35000 Altitude ft
55 Continuous Operating Temperature Min - C
70 Continuous Operating Temperature Max C
MIL-STD-810E Method 514.4 Procedure I Cat 4 Vibration
Type 7-376 Datasheet
