Type 7-54 Diplexer

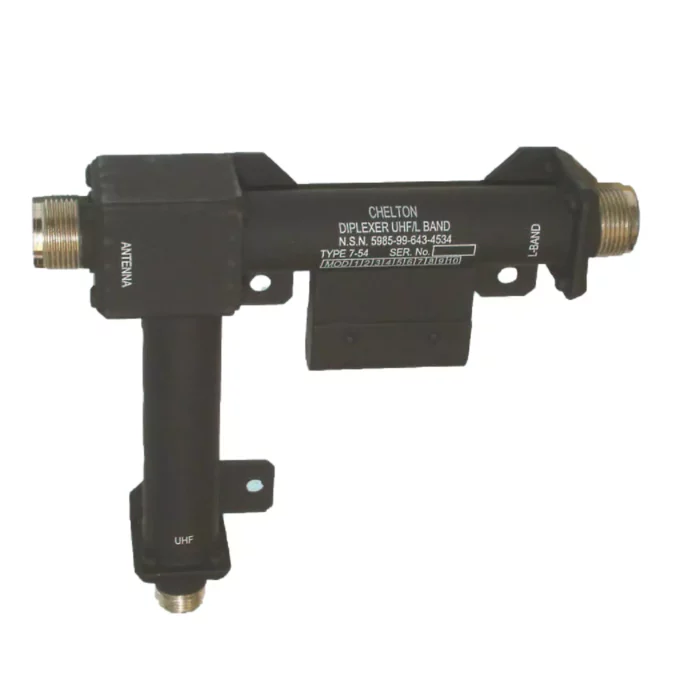

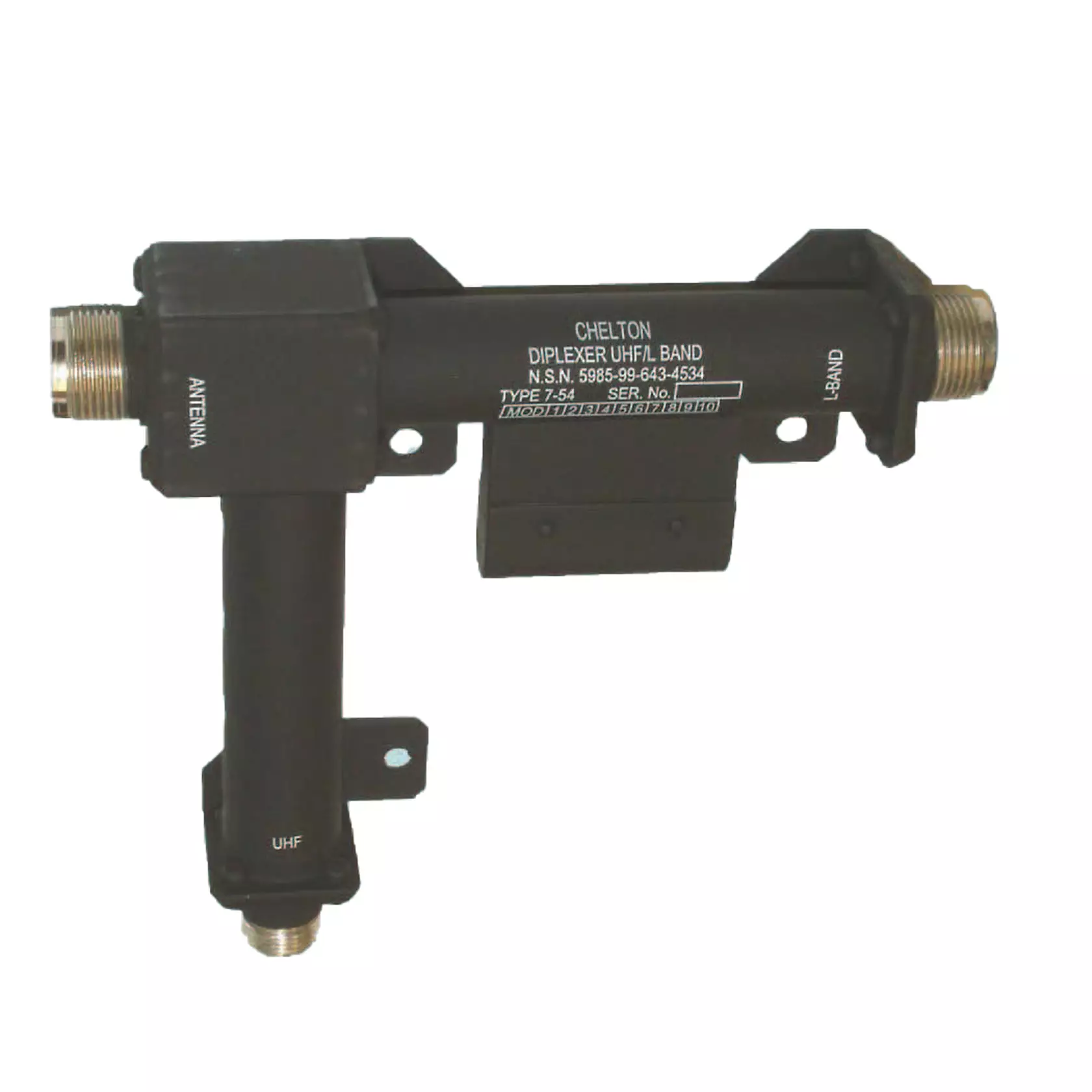

The 7-54 VHF/UHF/L-Band diplexer is one of a range of devices that are intended for use in general airborne applications. The diplexer accepts the signals from a single 30 MHz to 1220 MHz source, and provides separate isolated 30 MHz to 400 MHz and 960 MHz to 1220 MHz outputs. The 7-54 is constructed as discrete component filters housed within a tubular metal case. The end faces are closed with the RF connectors.

• ✔ allows two different devices to share a common communication channel using frequency-domain multiplexing
