Type 7-540 L-Band High Pass Filter

Type 7-540 Datasheet

Type 7-540 L-Band High Pass Filter

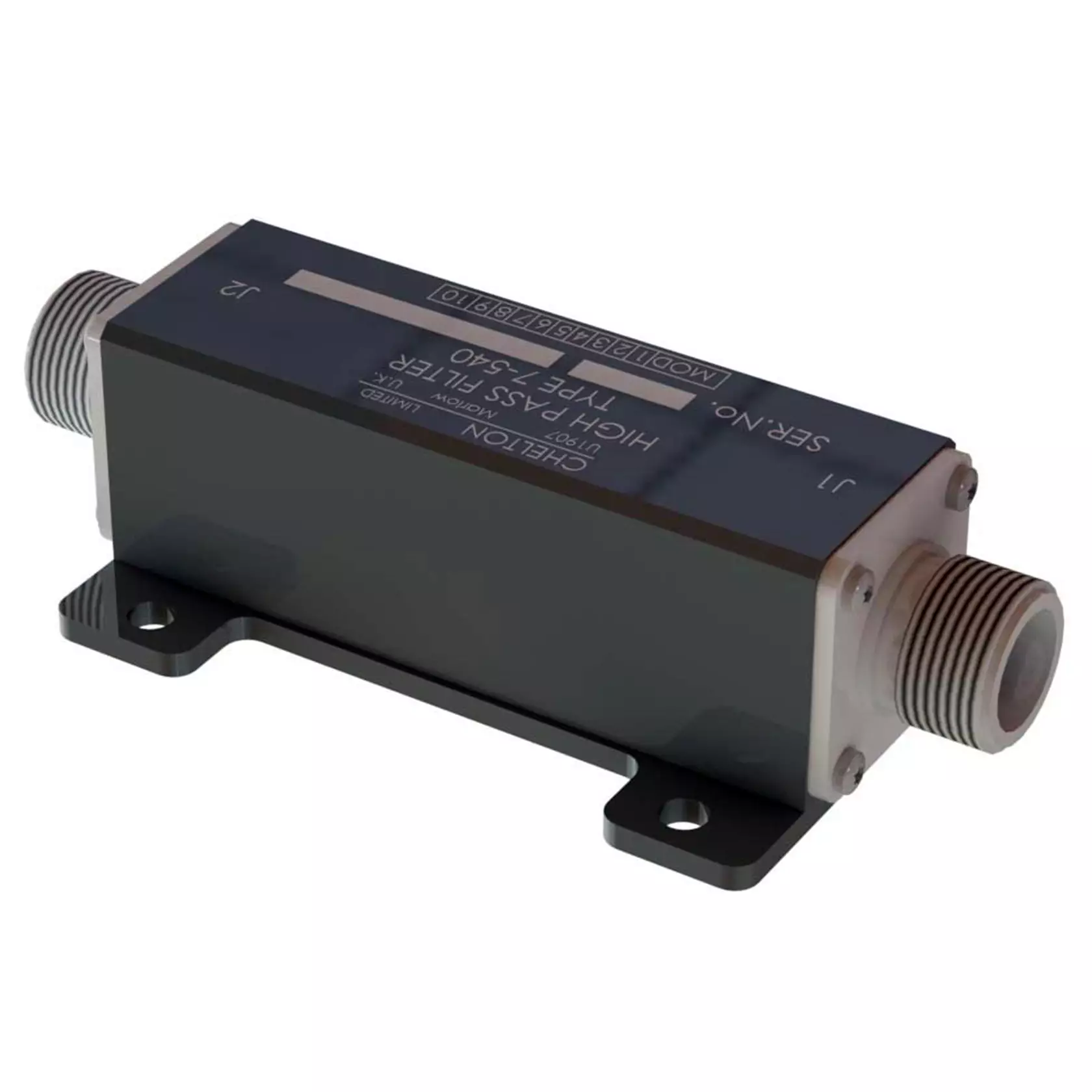

The 7-540 is an L-Band high pass filter designed to pass signals in the frequency range 960 MHz to 1220 MHz and stop signals in the frequency range 30 MHz to 530 MHz. The filter is intended for use in general subsonic airborne applications. The 7-540 comprises a discrete component filter assembly housed within an aluminium alloy box, and enclosed at each end by the RF connectors. The structure is foam filled to prevent the ingress of moisture. The 7-540 is configured as a Tchebyscheff filter.

  • ✔General subsonic airborne use
  • ✔Foam filled to prevent ingress of moisture
Click to enlarge

Specification

960-1220 Pass Band MHz
30-530 Stop Band MHz
50 Impedence
<1.5:1 Return Loss VSWR
50 Peak Power Watts
50 Average Power Watts
127 x 35.6 x 45.2 Full Dimensions LxWxH mm
0.27 Mass kg
HN Type Female (x2) Connector Type
30000 Altitude ft
54 Continuous Operating Temperature Min - C
55 Continuous Operating Temperature Max C
MIL-STD-810F, Method 514.5, Procedure I, Categories 12 and 13 Vibration
Type 7-540 Datasheet
