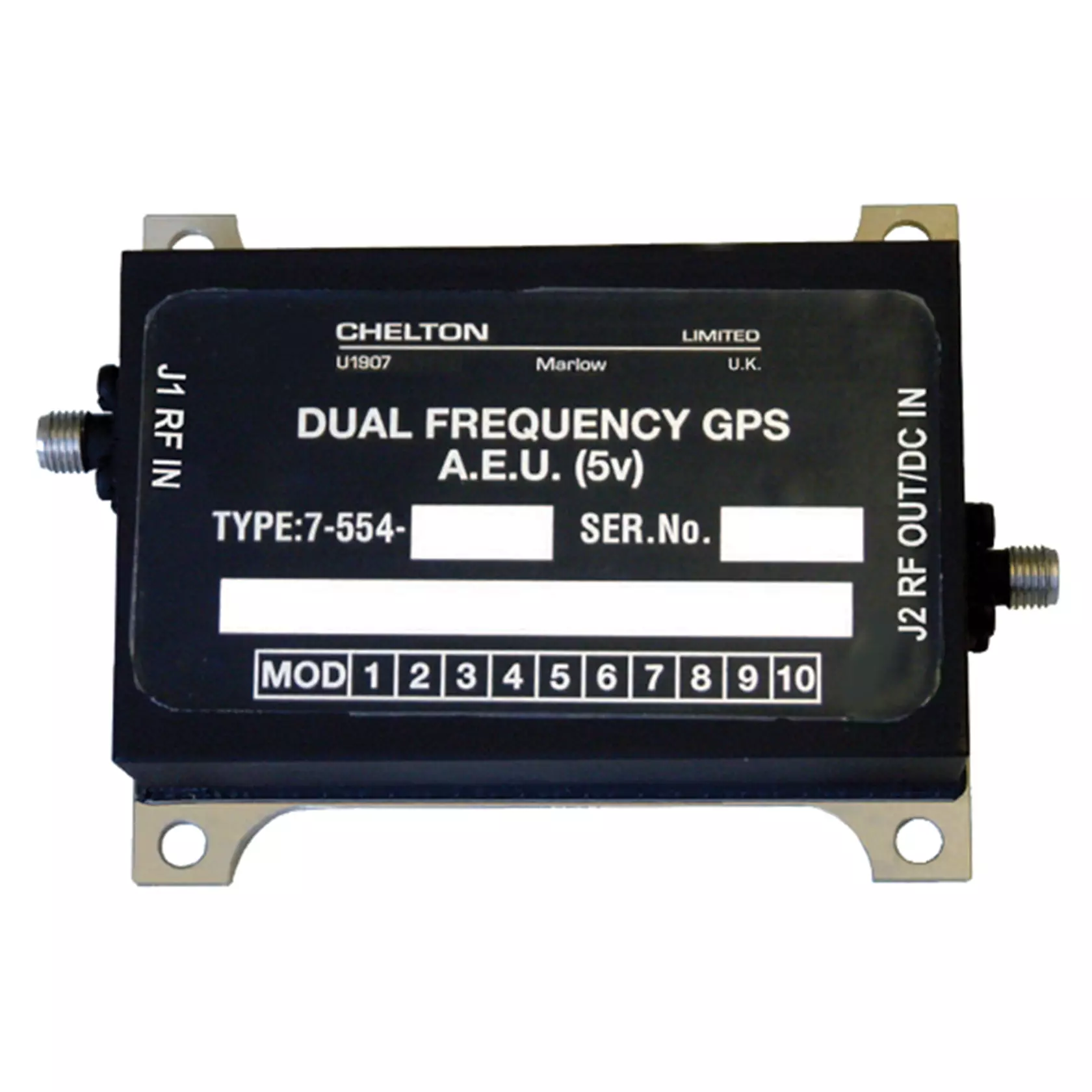

Type 7-554 Series Dual Frequency GPS Antenna Electronic Unit (5V) L1 / L2 Bands

The 7-554 Series of Antenna Electronic Units (AEU) are dual frequency GPS (Global Positioning Satellite System) pre-amplifiers designed to meet both electrical and environmental military aircraft application requirements. The 7-554 amplifies signals in the two GPS bands (L1 and L2) while rejecting spurious signals outside ±60 MHz of centre-bands (60 dB filtering incorporated). The pre-amplifier also incorporates a limiter circuit for high power protection. The pre-amplifiers are supplied configured to provide factory set gain that ranges from 12 dB to 24 dB. The 7-554 is powered from 5 V dc supplied on the RF output connector

• ✔M-Code Compatible
• ✔L1 and L2
• ✔Factory set gain ranges from 12dB to 24dB
