Type 7-7004 Three-Way Active GNSS Power Divider

Type 7-7004 Datasheet

Type 7-7004 Three-Way Active GNSS Power Divider

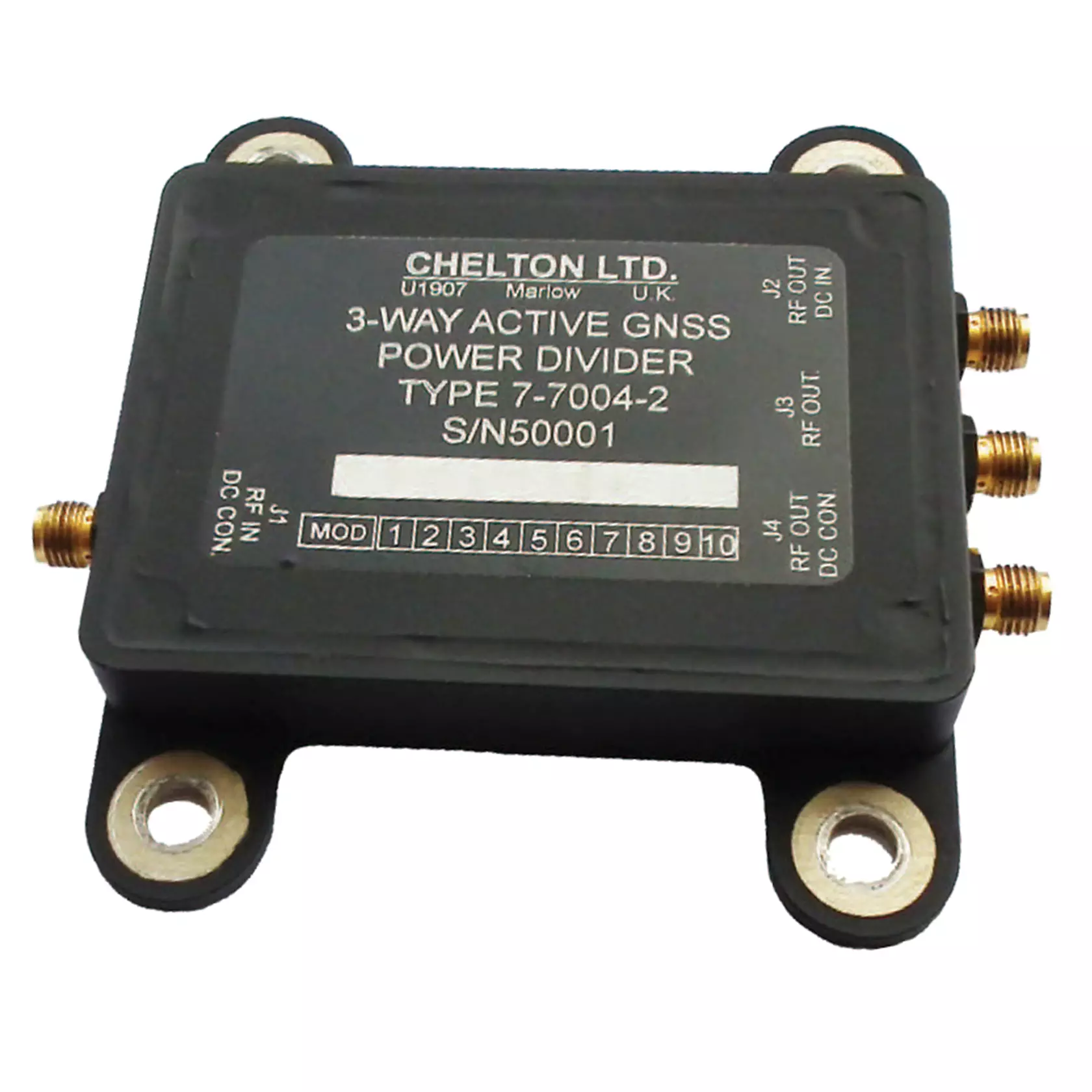

The 7-7004 is an active three-way RF power divider with internal amplification and DC pass through. It is designed for use with Global Navigation Satellite Systems (GNSS). The power divider is housed in a sealed, machined aluminium box and has four SMA RF connectors, one input and three outputs. One output connector supplies power to the internal amplifier. The second output connector is DC blocked. The third passes current to the RF input connector in order to power an external active GNSS antenna, if required…

  • ✔General subsonic airborne use
  • ✔Foam filled to prevent ingress of moisture
Click to enlarge

Specification

1164 Minimum Frequency
1620 Maximum Frequency
50 Impedence
<2.0:1 Return Loss VSWR
15 x 87.5 x 75.5 Full Dimensions LxWxH mm
0.13 (maximum) Mass kg
SMA Female Connector Type
4 holes fixed location Mounting Configuration 4
25000 Altitude ft
40 Continuous Operating Temperature Min - C
70 Continuous Operating Temperature Max C
RTCA DO-160F, Section 8, Paragraph 8.5.1, Curve L extended to 500 Hz Vibration
RTCA DO-160F, Section 6, Category A Humidity
Type 7-7004 Datasheet
