UHF blade antenna – 16-11

16-11 Datasheet

UHF blade antenna – 16-11

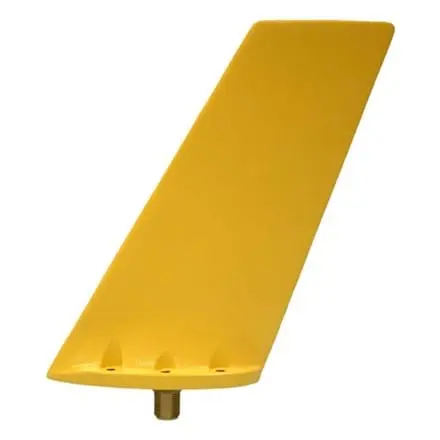

The 16-11 is a wide band passive antenna designed for the transmission or reception of RF signals over the frequency range 225 to 400 MHz. The antennas can be used singly or in matched pairs on high speed aircraft particularly where minimal aerodynamic drag is required.

  • ✔Raked for high speed
  • ✔High Temp (105C) occasional use
Click to enlarge

Specification

225 Minimum Frequency
400 Maximum Frequency
50 Impedence
3.0:1 max 225-235 MHz Return Loss VSWR
>0dBi Gain
Vertical Polarization
35 Peak Power Watts
35 Average Power Watts
194 x 53 x 208 Full Dimensions LxWxH mm
0.45 Mass kg
N Female Connector Type
50000 Altitude ft
54 Continuous Operating Temperature Min - C
70 Continuous Operating Temperature Max C
BS 3G100. Pt. 2. Sect.3.3.1 Vibration
16-11 Datasheet
