UHF Broadband Antenna – 12-437-13

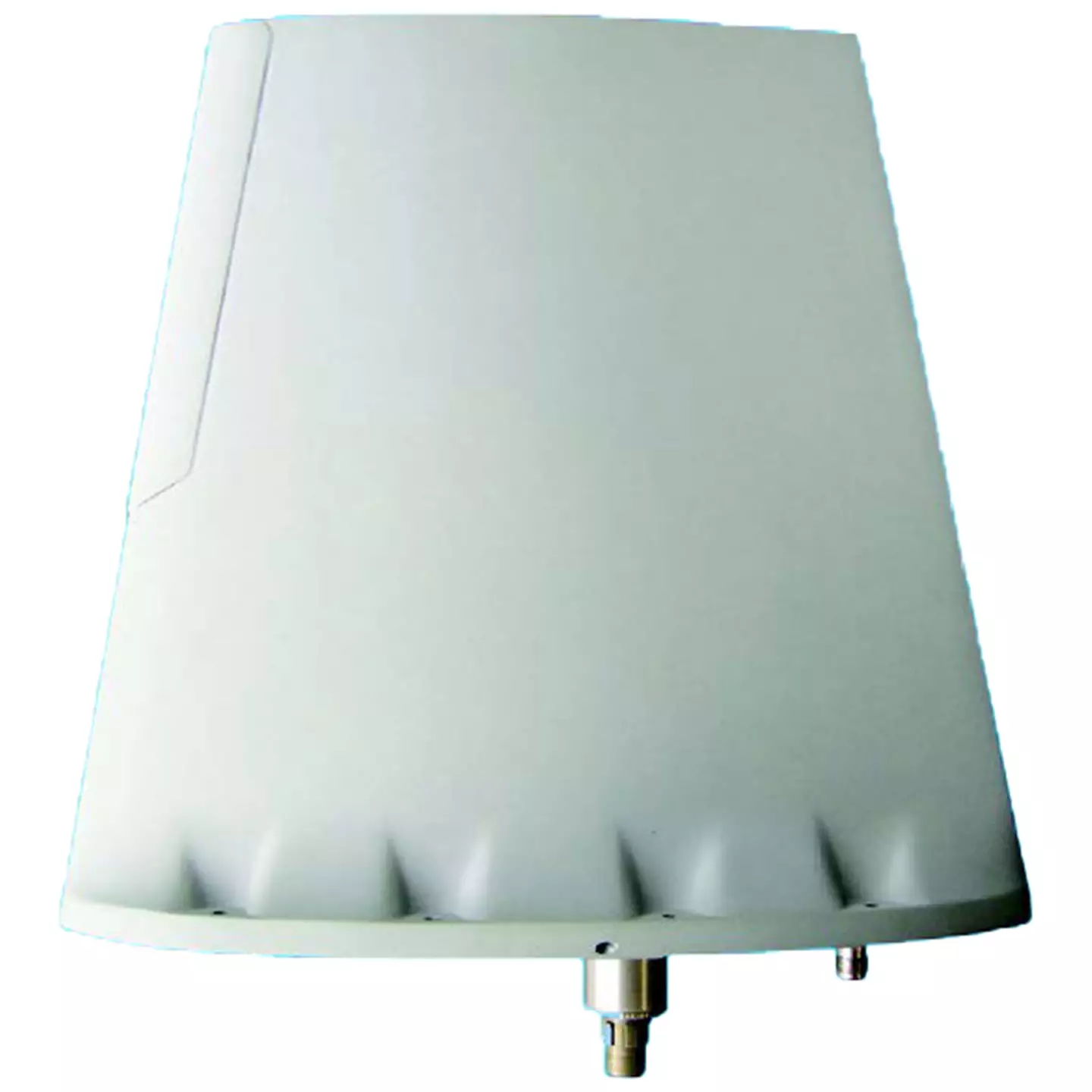

The 12-437-13 is a broadband, multifunction, tunable blade antenna designed to work with the ARC 210 radio over the frequency ranges 30 MHz to 88 MHz, 108 MHz to 174 MHz and 225 MHz to 400 MHz. The antenna also includes 121.5 MHz and 243 MHz guard functions.

  • ✔ Suitable for ARC-210
  • ✔ Broadband
  • ✔ Errosion protective stainless steel leading edge
  • ✔ Guard function frequencies
Click to enlarge

Specification

30 Minimum Frequency
400 Maximum Frequency
50 Impedence
≤ 2.5:1 30 MHz-88 MHz Return Loss VSWR
≤-14.5 dBi 30 MHz≤- Gain
Vertical Polarization
20 Average Power Watts
304.8 x 317.5 x 110.5 Full Dimensions LxWxH mm
304.8 Height Above Base Plate mm
2.5 Mass kg
RF: TNC Female Connector Type
50000 Altitude ft
54 Continuous Operating Temperature Min - C
55 Continuous Operating Temperature Max C
MIL-STD-810C, Method 514.2, Procedure I, Category b1 Vibration
MIL-STD-810C Standards
