UHF/L-Band Antenna – 16-113SS

16-113 Datasheet

UHF/L-Band Antenna – 16-113SS

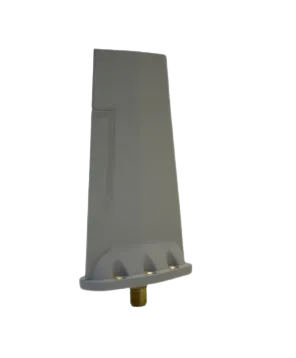

The 16-113/113SS is a dual band high power blade antenna operating in the frequency ranges 225 MHz to 400 MHz and 960 MHz to 1220 MHz. The principal application is airborne.

Click to enlarge

Specification

225 Minimum Frequency
1220 Maximum Frequency
50 Impedence
When mounted at center of nominal 9.75 m diameter groundplane (UHF) or 1.8 m diameter plane (L-Band) Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
122 x 53 x 202 mm Dimensions (LxWxH)
0.5 kg Mass
N female Connector
Air Platform(s)
54 Continuous Operating Temperature Min
95 Continuous Operating Temperature Max
DO-160 Standards
Air Suitable for Platform
16-113 Datasheet
