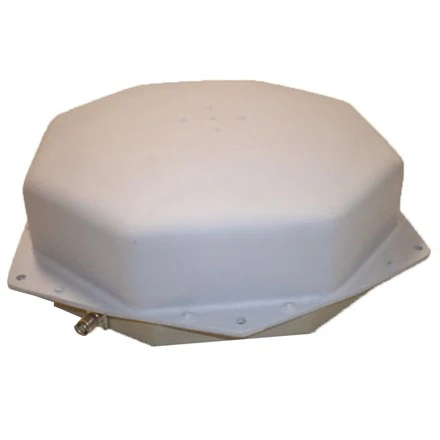

UHF SATCOM Antenna - 19-409

UHF SATCOM Antenna – 19-409

The 19-409 UHF SATCOM Antenna is a dual-usage antenna, operating in the 243 MHz – 270MHz and 293 MHz – 318 MHz frequency bands.

Specification

243 Minimum Frequency

318 Maximum Frequency

50 Impedence

≤ 2.0:1 Return Loss VSWR

RHCP Polarization

Orthogonal Radiation Pattern Azimuth

Orthogonal Radiation Pattern Elevation

150 Peak Power Watts

150 Average Power Watts

320 x 300 x 100 Full Dimensions LxWxH mm

2.27 Mass kg

TNC Type Female Connector Type

45000 Altitude ft

54 Continuous Operating Temperature Min - C

71 Continuous Operating Temperature Max C

MIL-STD-810E Vibration

MIL-STD-810 Standards
