UHF Satcom Antenna – 19H429

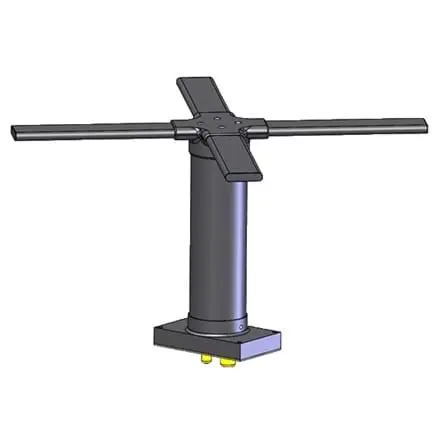

The 19H429 is a combined low-high angle, light weight and high efficiency airborne UHF satellite communications antenna providing hemispheric pattern coverage by means of two independent co-located elements built into a single, aerodynamic shell. The antenna is designed to operate in high temperature environments.

  • ✔ Combined Low-High Angle
  • ✔Lightweight
  • ✔High Efficiency
  • ✔ Can withstand high temperatures
Click to enlarge

Specification

225 Minimum Frequency
400 Maximum Frequency
50 Impedence
Low angle: -6.7 dB max (2.7:1) Return Loss VSWR
Low angle: Average within 2 dB of a quarterwave stub (+4 dBi typical) Gain
Low angle: Predominantly vertical Polarization
1.02 Mass kg
Low angle: TNC female Connector Type
30000 Altitude ft
57 Continuous Operating Temperature Min - C
71 Continuous Operating Temperature Max C
