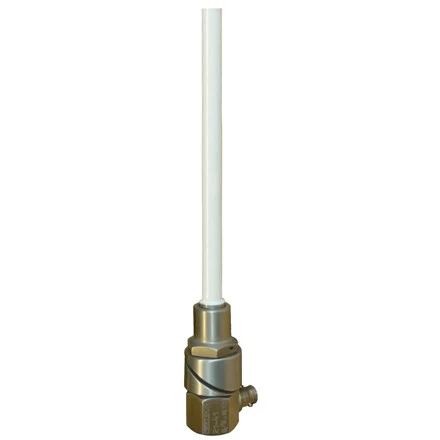

UHF Whip Antenna 21-68

The 21-68 is a UHF whip antenna designed to provide communications in the frequency range 380 to 470 MHz. It is intended for use in general subsonic airborne applications.

  • ✔Lightweight Whip
  • ✔BNC and TNC types available
Click to enlarge

Specification

380 Minimum Frequency
470 Maximum Frequency
50 Impedence
2.5:1 max Return Loss VSWR
≤ 0 dBi Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
25 Peak Power Watts
212 x 23 x 23 Full Dimensions LxWxH mm
212 Height Above Base Plate mm
0.1 Mass kg
TNC and BNC Female Connector Type
25000 Altitude ft
45 Continuous Operating Temperature Min - C
70 Continuous Operating Temperature Max C
RTCA DO-160E, Sect 8, Cat U2, Curves F and F1 Vibration
DO-160C, Sect 23, Cat X Lightning
