V/UHF Broadband and Satcom Antenna – 19-440-10N

19-440-10N Datasheet

V/UHF Broadband and Satcom Antenna – 19-440-10N

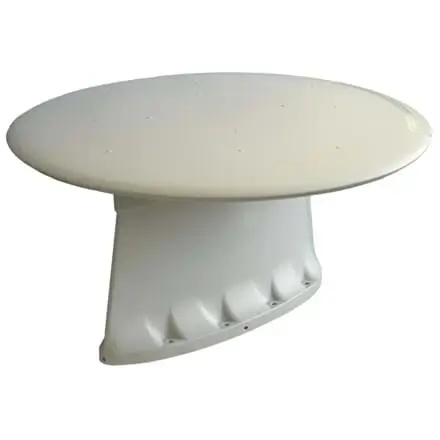

The 19-440-10 V/UHF Broadband and UHF SatCOM Antenna is a combined broadband VHF/UHF communications and UHF satellite communications antenna.

  • ✔MUOS Compatible
  • ✔Dual use either UHF comms or UHF Satcom
  • ✔Low Profile
  • ✔Combined Low-High Angle
  • ✔High Efficiency
  • ✔SATCOM
Click to enlarge

Specification

30 Minimum Frequency
400 Maximum Frequency
50 Impedence
Low Angle:2.5:1 max Return Loss VSWR
Low Angle: Gain
RHCP||Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
200 Peak Power Watts
50 Average Power Watts
403.86 x 403.86 x 209.55 Full Dimensions LxWxH mm
209.5 Height Above Base Plate mm
3.65 Mass kg
Low Angle N Type Female Connector Type
54 Continuous Operating Temperature Min - C
95 Continuous Operating Temperature Max - C
MIL-STD-810E, Method 514.4, Procedure I, Category 10 Vibration
DO-160 Standards
19-440-10N Datasheet
