V/UHF Broadband Antenna – 9-33-26

9-33-26 Datasheet

V/UHF Broadband Antenna – 9-33-26

The 9-33-26 is a combined VHF/UHF broadband antenna designed to provide communications over the frequency range 30 MHz to 512 MHz, and intended for use in general airborne applications.

  • ✔ Broad frequency range
  • ✔ Good VSWR even at low freq
  • ✔ Composite radome

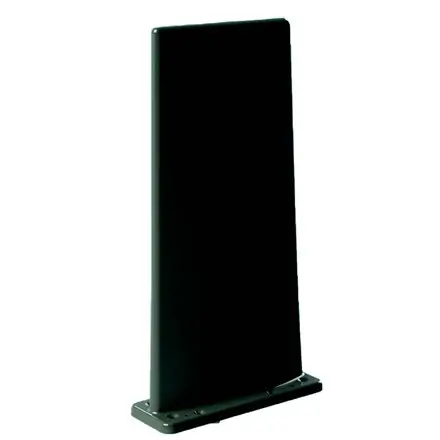

Click to enlarge

Specification

30 Minimum Frequency
512 Maximum Frequency
50 Impedence
< 2.5:1 Return Loss VSWR
>-25 dBi 30 MHz Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
331 x 66 x 173.5 Full Dimensions LxWxH mm
1 Mass kg
TNC Female Connector Type
50000 Altitude ft
54 Continuous Operating Temperature Min - C
55 Continuous Operating Temperature Max C
MIL-STD-810E Vibration
MIL-STD-810 Standards
9-33-26 Datasheet
