V/UHF L-Band Antenna – 12-190-229

V/UHF L-Band Antenna – 12-190-229

Type 12-190-229 is a low-profile, multi-band tuneable blade antenna.

  • ✔ Multi-Band Tuneable
  • ✔Height 254mm
  • ✔Gain of -13dBi at 30MHz
  • ✔Maximum Gain over Bands
  • ✔Highly Resilient

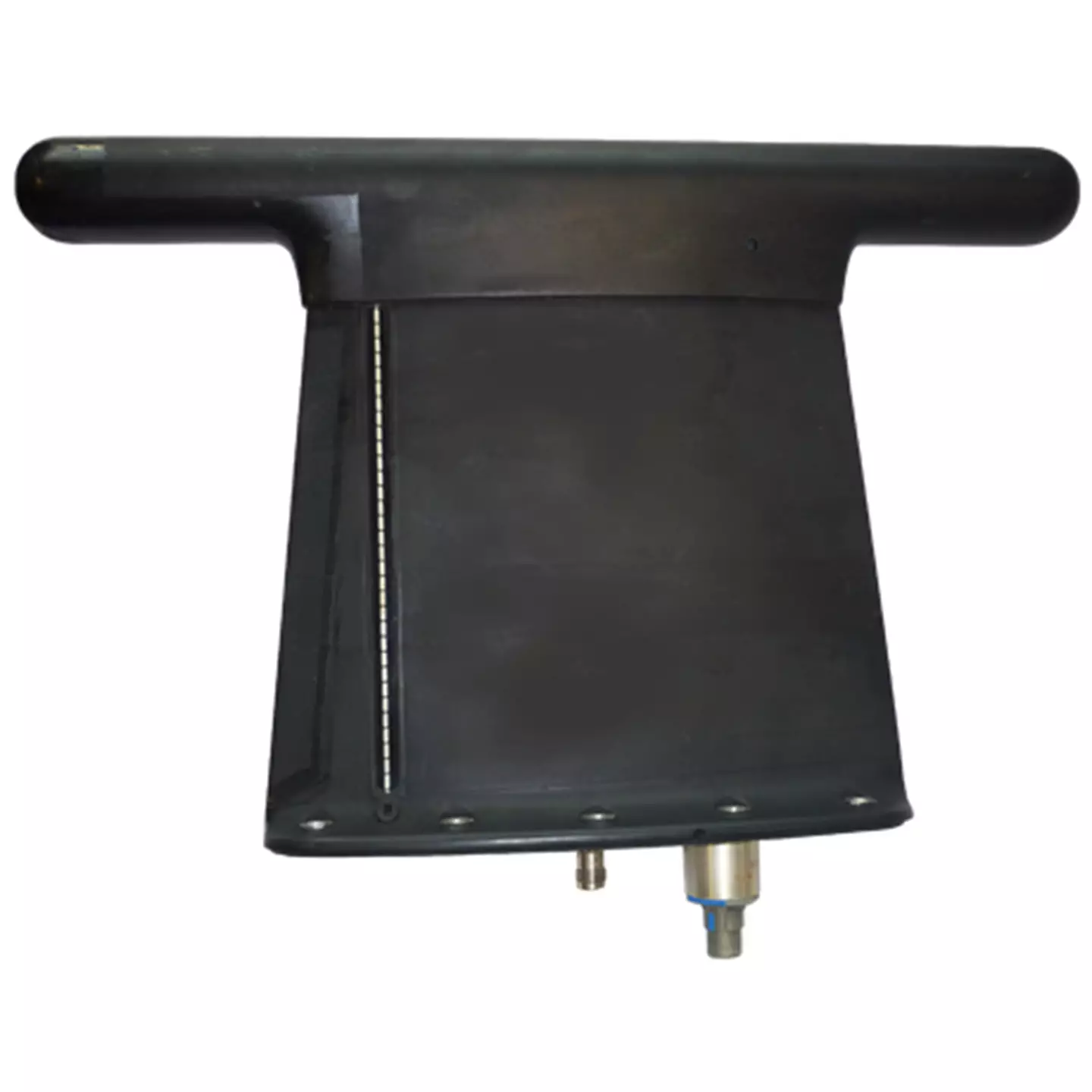

V/UHF L-Band Antenna - 12-190-229 - Image 1
Click to enlarge

Specification

30 Minimum Frequency
400 Maximum Frequency
50 Impedence
≤2.5:1 Return Loss VSWR
30 MHz: ≤-13dBi Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
30 Average Power Watts
396 x 71 x 254 Full Dimensions LxWxH mm
1.8 Mass kg
TNC female Connector Type
50000 Altitude ft
54 Continuous Operating Temperature Min - C
57 Continuous Operating Temperature Max C
DO-160 Standards
