V/UHF L-Band Passive Blade Antenna – 28-5001

V/UHF L-Band Passive Blade Antenna – 28-5001

The 28-5001 is a passive V/UHF/L-band antenna designed to provide communications in the frequency ranges 30 to 88 MHz, 108 to 174 MHz, 225 to 400 MHz and 960 to 1220 MHz and intended for use in supersonic airborne applications.

  • ✔ Supersonic applications
  • ✔ Multiband passive
  • ✔ Gain > -26dBi at 30MHz
  • ✔ Height 312mm (12.3 inches)

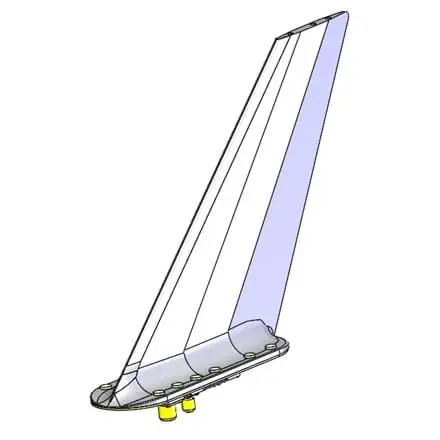

Click to enlarge

Specification

30 Minimum Frequency
1220 Maximum Frequency
50 Impedence
30 to 88 MHz > 7.4 dB (VSWR < 2.5:1) Return Loss VSWR
30 MHz: > -26 dBi Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
500 Peak Power Watts
25 Average Power Watts
457 x 92 x 312 Full Dimensions LxWxH mm
1.8 Mass kg
N Type: 30-400MHz Connector Type
70000 Altitude ft
54 Continuous Operating Temperature Min - C
95 Continuous Operating Temperature Max C
MIL-STD-810E, Method 514.5 Procedure I, Category 5 Vibration
MIL-STD-810 Standards
