V/UHF L-Band Tuneable Blade Antenna – 12-190-530LP

The 12-190-530LP is a V/UHF/L-band antenna designed to provide communications in the frequency ranges 30 MHz to 88 MHz, 118 MHz to 174 MHz, 225 MHz to 512 MHz and 960 MHz to 1220 MHz, and intended for use in general subsonic airborne applications. The antenna is provided with lightning protection.

  • ✔ Multi-Band Tuneable
  • ✔ Lightning Protection
  • ✔ Gain of -14.5dBi at 30MHz

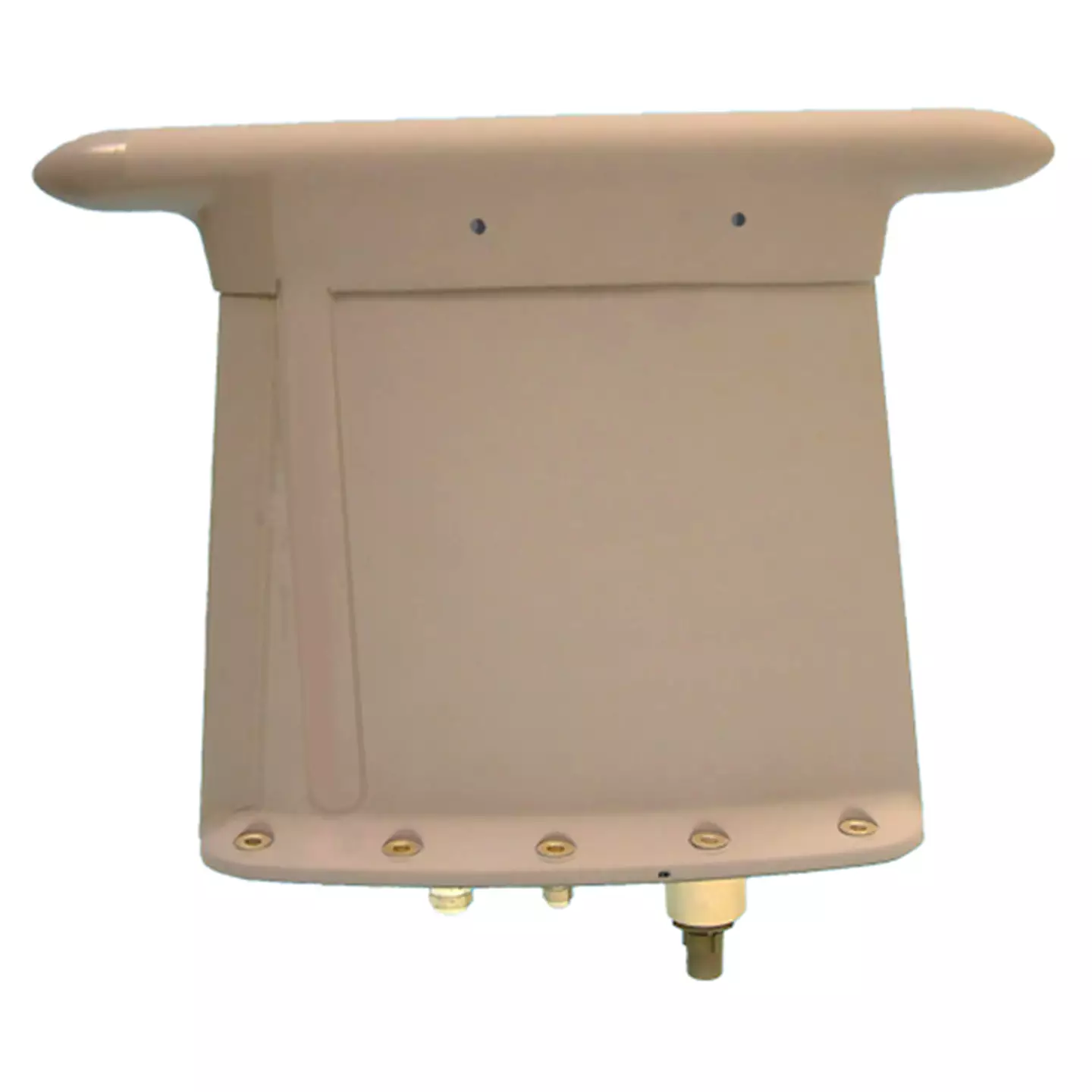

Click to enlarge

Specification

30 Minimum Frequency
1220 Maximum Frequency
50 Impedence
≤ 7.36 dB (VSWR ≤ 2.5:1) 30 MHz to 88 MHz Return Loss VSWR
≤ -14.5 dBi at 30 MHz Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
315 x 71 x 234 Full Dimensions LxWxH mm
1.59 Mass kg
30 - 400: TNC female; Connector Type
70000 Altitude ft
54 Continuous Operating Temperature Min - C
71 Continuous Operating Temperature Max C
MIL-STD-810E, Method 514.4, Procedure I, Category 4 Vibration
MIL-STD-1757, Zone 2B Lightning
12-190-530LP Datasheet
