V/UHF Multiband Antenna – 12-204

V/UHF Multiband Antenna – 12-204

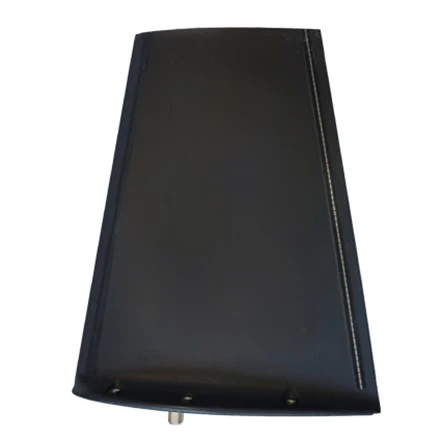

Type 12-204 is a multi-band passive V/UHF antenna with lightning diverter strip.

  • ✔ Multi-Band Passive
  • ✔ Gain of -24dBi at 30MHz
  • ✔ Lightning Protected
  • ✔ High Efficiency
Click to enlarge

Specification

30 Minimum Frequency
400 Maximum Frequency
50 Impedence
30 - 88 MHz: <2.5:1 Return Loss VSWR
30 MHz: -24 dBi Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
50 Average Power Watts
299 x 91 x 384 Full Dimensions LxWxH mm
1.91 Mass kg
N Type Female Connector Type
50000 Altitude ft
54 Continuous Operating Temperature Min - C
71 Continuous Operating Temperature Max C
MIL-STD-810C, Method 514.2 Vibration
DO-160 Standards
