V/UHF Passive Blade Antenna – 12-231
V/UHF Passive Blade Antenna – 12-231

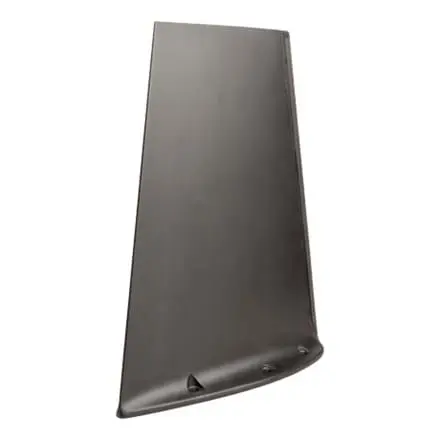

The 12-231 antenna is a V/UHF passive blade antenna for operation with radios working over the frequency bands 30-88 MHz, 108-174 MHz and 225-512 MHz.
Specification
30
Minimum Frequency
400
Maximum Frequency
50
Impedence
30 - 88 MHz < 2.5:1
Return Loss VSWR
30 MHz -23 dBi (min)
Gain
Vertical
Polarization
1.7
Mass kg
N Female 12-231
Connector Type
30000
Altitude ft
40
Continuous Operating Temperature Min - C
55
Continuous Operating Temperature Max C
