The 12-5001 is a compact high efficiency PIN diode tuned antenna operating over the frequency range 30 MHz to 941 MHz, intended for general airborne applications up to MACH 1.

  • ✔ Intended for general airborne applications up to MACH 1
  • ✔ Lightweight composite radome
  • ✔ Compatible with high power radios
  • ✔ Designed to be used with the Type 7-5001 Logic Converter Unit (LCU)

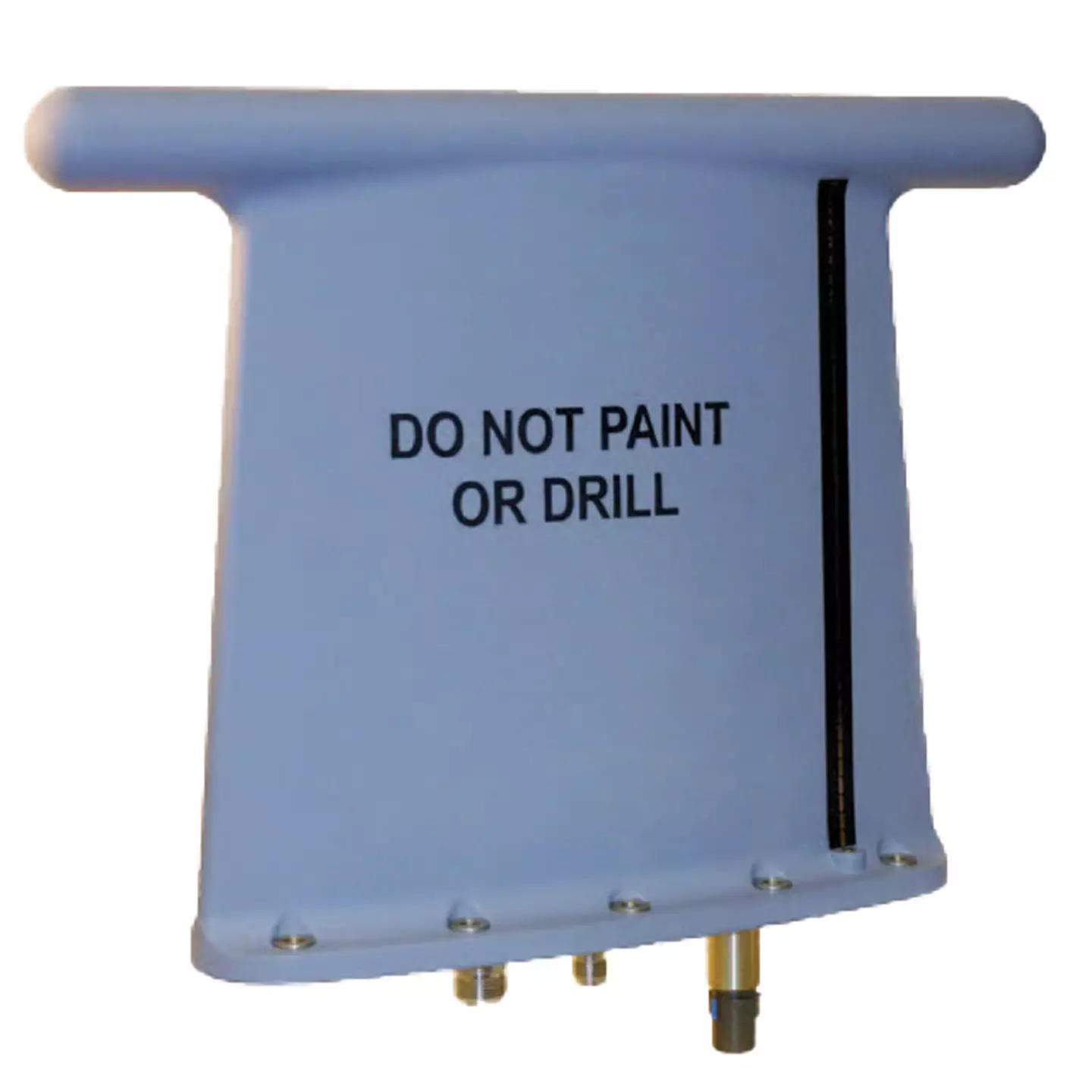

Click to enlarge

Specification

30 Minimum Frequency
941 Maximum Frequency
50 Impedence
30 -87.995 < 2.5:1, 118 -173.995 < 2.5:1, 225 -299.995 < 2.3:1, 300 -511.995 < 2.0:1, 512 -941 < 2.0:1 Return Loss VSWR
Vertical Polarization
25 Peak Power Watts
25 Average Power Watts
315 x 235 x 72 Full Dimensions LxWxH mm
235 Height Above Base Plate mm
70000 Altitude ft
54 Continuous Operating Temperature Min - C
71 Continuous Operating Temperature Max C
MIL-STD-810F, Method 514.5, Procedure I Vibration
EUROCAE ED-14F / RTCA DO-160F, Section 23, Zone 1B Lightning
