V/UHF Tuneable Blade Antenna – 12-190-61

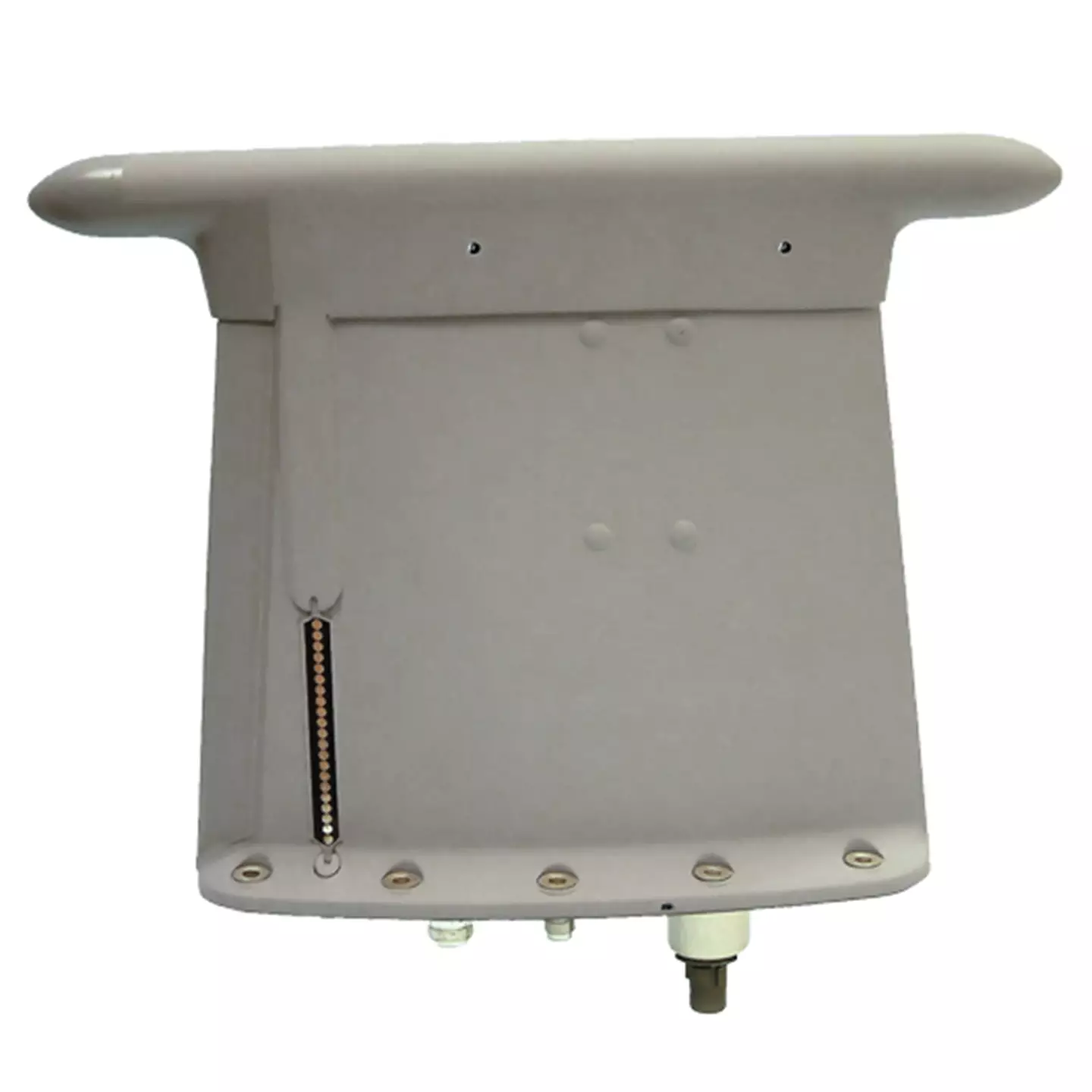

Type 12-190-61 is a low profile, high efficiency, PIN diode tuned, antennas. Intended for general airborne application, and operating over the frequency ranges 30 MHz to 88 MHz, 108 MHz to 174 MHz and 225 MHz to 400 MHz. Similar to 12-190-60, but with 8 mounting holes.

  • ✔ Multi-Band Tuneable
  • ✔ Lightning Protection
  • ✔ Gain of -14.5dBi at 30MHz
  • ✔ Guard performance at 121.5 MHZ and 243MHz in all bands.
  • ✔ Lightning Protected
Click to enlarge

Specification

30 Minimum Frequency
400 Maximum Frequency
50 Impedence
30- 88 MHz: ≤2.5:1 Return Loss VSWR
30 MHz: ≤-14.5 dBi Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
315 x 71 x 235 Full Dimensions LxWxH mm
1.6 Mass kg
TNC Female Connector Type
70000 Altitude ft
54 Continuous Operating Temperature Min - C
71 Continuous Operating Temperature Max C
MIL-STD-810D, Method 514.3, Procedure 1 Vibration
MIL-STD-810 Standards
12-190-61 Datasheet
