Very Low Profile Tuneable V/UHF Blade Antenna – 12-224

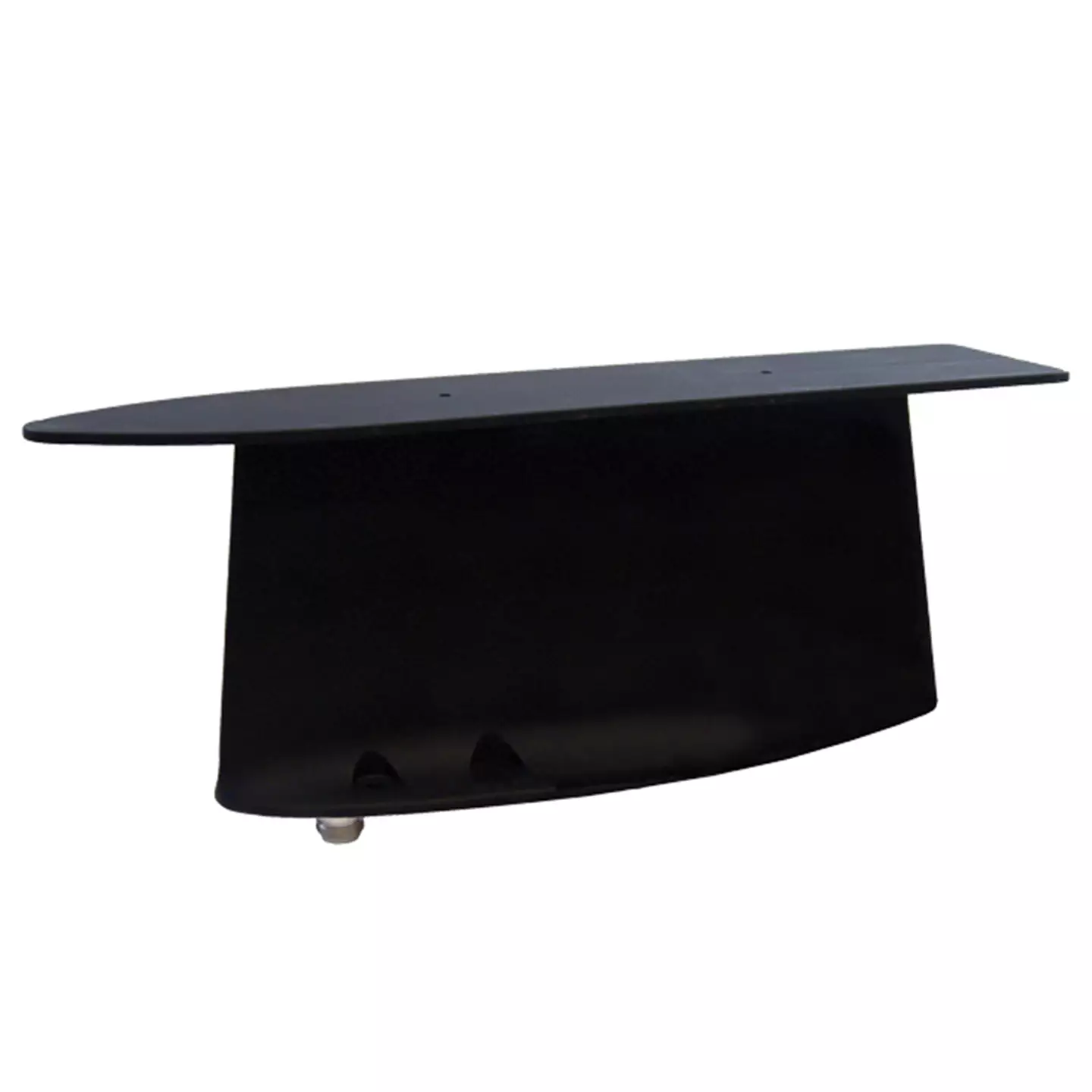

The 12-224 is a low profile V/UHF blade antenna designed for use with the RT 5000 radio in general subsonic airborne applications. When installed it is tuned by means of a 7-119PIN9 Logic Convertor Unit.

  • ✔ Multi-Band Tuneable
  • ✔Height < 6 inches
  • ✔ Gain at 30MHz > -15 dBi
  • ✔ top-loading
  • ✔ Compatible with RT-5000 Radio
Click to enlarge

Specification

29.7 Minimum Frequency
960 maximum Frequency
50 Impedence
≤ 2.5:1 all bands VSWR
30 MHz: -15 dBi Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
140 x 91 x 380 Connector Type
1.6 Mass kg
RF 29.7-88MHz: N type female Connector type
50000 Altitude ft
54 Continuous Operating Temperature Min - C
71 Continuous Operating Temperature Max C
MIL-STD-810E. Method 514.4. Proc I. Cat 10 Vibration
MIL-STD-810 Standards
