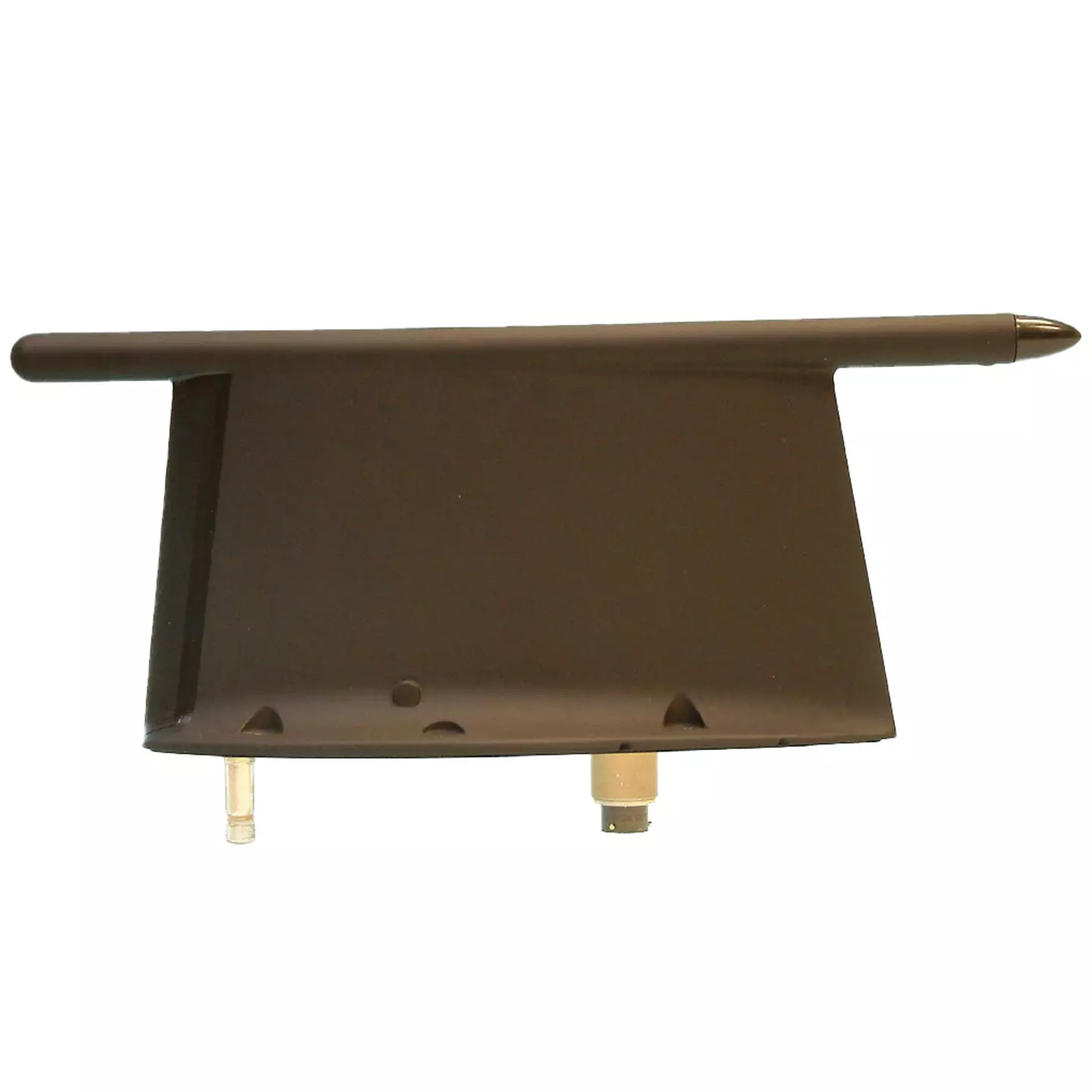

Very Low Profile V/UHF Antenna – 12-226

The Type 12-226 is a high gain V/UHF antenna, of very low height, that provides for extremely efficient AM/FM communications (including secure speech frequency-hopping modes), while satisfying the twin requirements of low observability and low ground clearance as exists on a number of airborne platforms.

  • ✔ Compatible with ARC-210 and ARC-182
  • ✔ Very Low Profile
  • ✔ Extremely efficient AM/FM Communications including secure speech frequency hopping
  • ✔6 Hole Mounting
Click to enlarge

Specification

30 Minimum Frequency
400 Maximum Frequency
50 Impedence
≤ 2.5:1 all bands Return Loss VSWR
≤ -14 dBi30 MHz≤ -7 dBi88 MHz≤ -3 dBi average118 MHz-174 MHz≤ 0 dBi average225 MHz-400 MHz Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
15 Average Power Watts
417 x 167 x 90.5 Full Dimensions LxWxH mm
167 Height Above Base Plate mm
1.35 Mass kg
RF: TNC Type Female DC:PT12-10P Connector Type
15000 Altitude ft
54 Continuous Operating Temperature Min - C
71 Continuous Operating Temperature Max C
MIL-STD-810C, Method 514.2, Category c, Procedure I (modified) Vibration
MIL-STD-810C Standards
