VHF AM/FM Tuneable Antenna – 9-229

9-229 Datasheet

VHF AM/FM Tuneable Antenna – 9-229

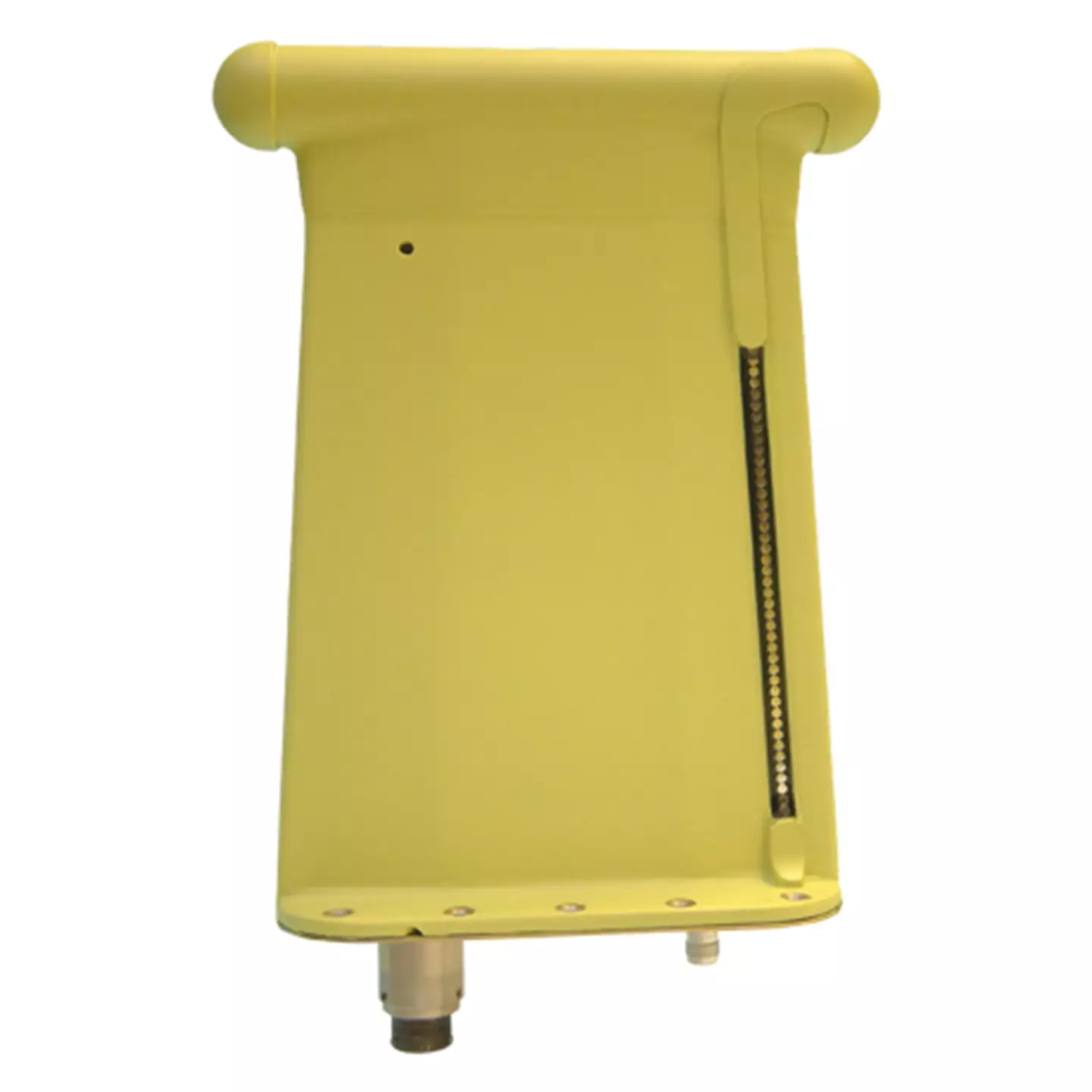

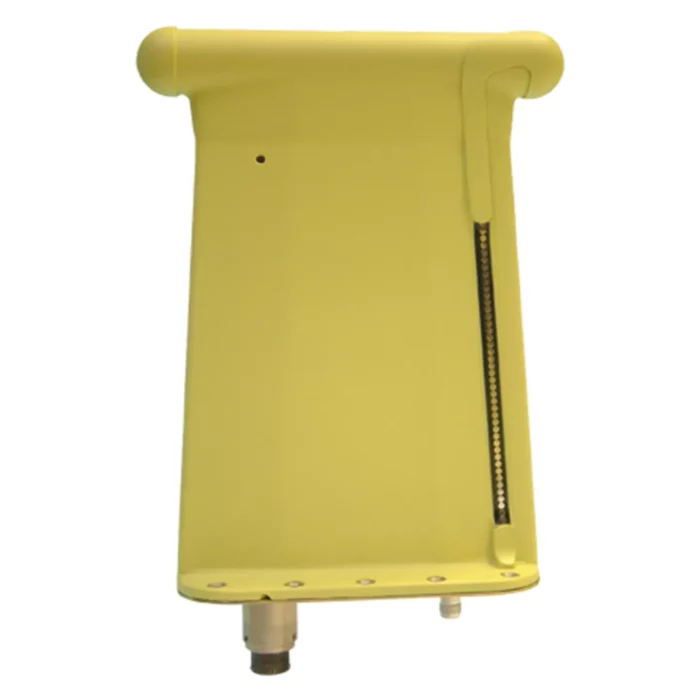

The 9-229 is a broadband tuneable antenna designed to operate over the frequency range 30 MHz to 152 MHz. The antenna is fitted with a coaxially implemented top tube assembly which provides enhanced gain and protection against lightning strike.

  • ✔ Broadband Tuneable
  • ✔ Height 269mm (10.6 inches)
  • ✔ Gain ≤ -13dBi at 30MHz
  • ✔ Lightning Protection
Click to enlarge

Specification

30 Minimum Frequency
152 Maximum Frequency
50 Impedence
≤2.5:1 Return Loss VSWR
30: -13 dBi; Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
As electrically short monopole Radiation Pattern Elevation
15 Peak Power Watts
208 x 66 x 229 Full Dimensions LxWxH mm
1.36 Mass kg
54 Continuous Operating Temperature Min - C
55 Continuous Operating Temperature Max - C
MIL-STD-810C Vibration
DO-160 Standards
