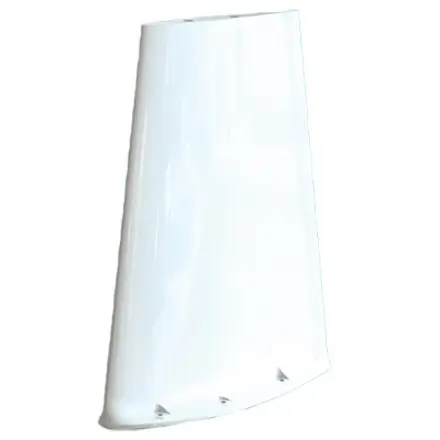

VHF Blade Antenna – 12-48

VHF Blade Antenna – 12-48

VHF antenna for airborne transmission and reception at speeds up to 0.85 Mach.

  • ✔ Separate connectors for simultaneous transmission on VHF and UHF
Click to enlarge

Specification

118 Minimum Frequency
174 Maximum Frequency
50 Impedence
≤ 2.0:1 Return Loss VSWR
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
303 x 63.5 x 370.8 Full Dimensions LxWxH mm
1.58 Mass kg
VHF: TNC Connector Type
70 Continuous Operating Temperature Min - C
70 Continuous Operating Temperature Max C
