VHF Blade antenna with top tube – 16-21B

16-21 Datasheet

VHF Blade antenna with top tube – 16-21B

The 16-21 series antennas are VHF blade type antennas that operate over the frequency range of 118 to 137 MHz. They are designed predominantly for use in airborne applications.

  • ✔Passive single band
  • ✔ Lightweight
  • ✔ Stainless steel Leading Edge
  • ✔BNC connector

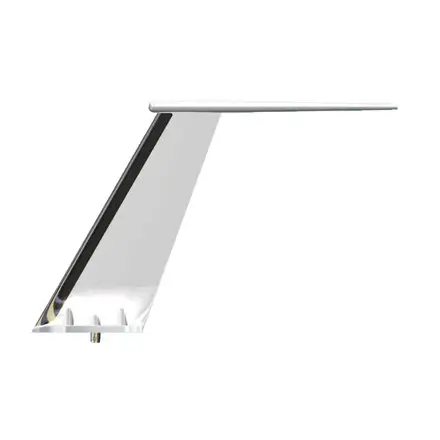

Click to enlarge

Specification

118 Minimum Frequency
137 Maximum Frequency
50 Impedence
118-136: < 2.5:1 Return Loss VSWR
118-136: > -1dBi Gain
Vertical Polarization
Radiation Pattern Azimuth Radiation Pattern Azimuth
415 x 52 x 258 Full Dimensions LxWxH mm
0.49 Mass kg
BNC Connector Type
35000 Altitude ftAltitude ft
55 Continuous Operating Temperature Min - C
70 Continuous Operating Temperature Max C
RTCA DO-160C, Sect 8, Cat S, Curves L&M combined Vibration
designed to TSO C169 Standards
16-21 Datasheet
