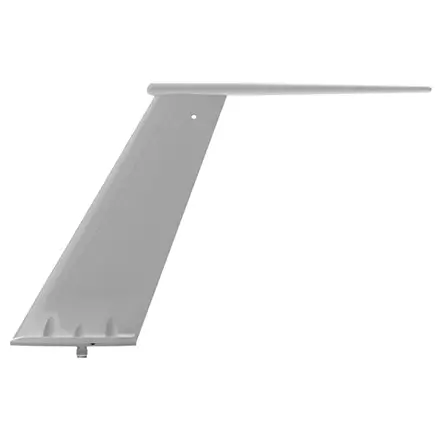

VHF Blade antenna with top tube – 16-41-1T

VHF Blade antenna with top tube – 16-41-1T

The antennas type 16-41 and 16-434 are broadband blade antennas intended for omni-directional transmission and reception of signals in the frequency bands 118-152 MHz and 118-174 MHz respectively.

  • ✔ Passive broadband
  • ✔ Stainless steel and PU leading edges available
  • ✔ Lightweight
  • ✔ N Type, TNC, and BNC options
  • ✔ LP version available
Click to enlarge

Specification

118 Minimum Frequency
152 Maximum Frequency
50 Impedence
2.5:1 Return Loss VSWR
118 MHz ≤ -2 dBi Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
As per Stub Radiation Pattern Elevation
417 x 52 x 258 Full Dimensions LxWxH mm
0.47 Mass kg
TNC Female Connector Type
45000 Altitude ft
40 Continuous Operating Temperature Min - C
50 Continuous Operating Temperature Max C
BS 3G 100 Part 2, Section 3, Sub -section 3.1 (1969) Vibration
BS 3G 100 Standards
