VHF/FM Antenna Array – 19-415

19-415 Datasheet

VHF/FM Antenna Array – 19-415

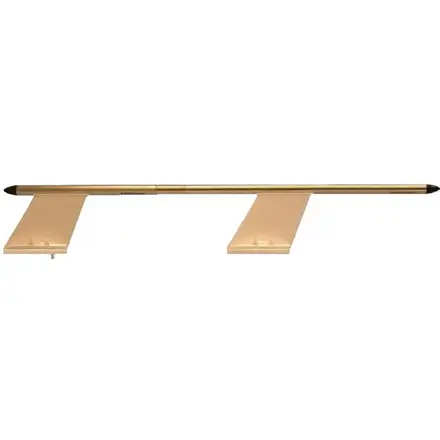

The 19-415 is an electrically small, high efficiency antenna, consisting of two glass reinforced plastic composite masts surmounted by an aluminium top loading. The antenna covers the VHF band 30 MHz to 88 MHz.

  • ✔ Electrically small
  • ✔ High Efficiency
  • ✔ GRP, aluminium and composite construction
  • ✔ Stainless steel top tube for durability
Click to enlarge

Specification

30 Minimum Frequency
88 Maximum Frequency
50 Impedence
2.5:1 (maximum) Return Loss VSWR
≤ -25 dBi30 MHz Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
50 Peak Power Watts
50 Average Power Watts
133.3 x 914.4 52.3 Full Dimensions LxWxH mm
1 Mass kg
TNC Type Female Connector Type
50000 Altitude ft
54 Continuous Operating Temperature Min - C
55 Continuous Operating Temperature Max C
MIL-STD-810E, Method 514.4, Categories 4 (Propeller Aircraft and Turbine Engines) and 6 (Helicopter) Vibration
General applications environment MIL-T-5400 Class 1 Standards
