VHF/FM Passive Blade Antenna – 12-310

12-310 Datasheet

VHF/FM Passive Blade Antenna – 12-310

  • ✔ High Efficiency
  • ✔ Passive
  • ✔ Gain > -15dBi
  • ✔ Rugged
  • ✔ FM operation

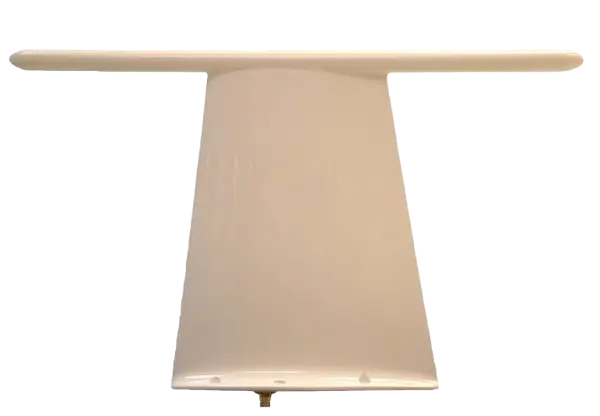

Click to enlarge

Specification

30 Minimum Frequency
88 Maximum Frequency
50 Impedence
≤ 3.0:1 Return Loss VSWR
-15 dBi minimum Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
As per Stub Radiation Pattern Elevation
25 Average Power Watts
639 x 92 x 380 Full Dimensions LxWxH mm
2.1 Mass kg
N Type Female Connector Type
15000 Altitude ft
40 Continuous Operating Temperature Min - C
55 Continuous Operating Temperature Max C
MIL-STD-810C, Method 514.2, Proc I, Curve M Vibration
DO-160 Standards
