VHF Tuneable Blade Antenna - 12-146

VHF Tuneable Blade Antenna – 12-146

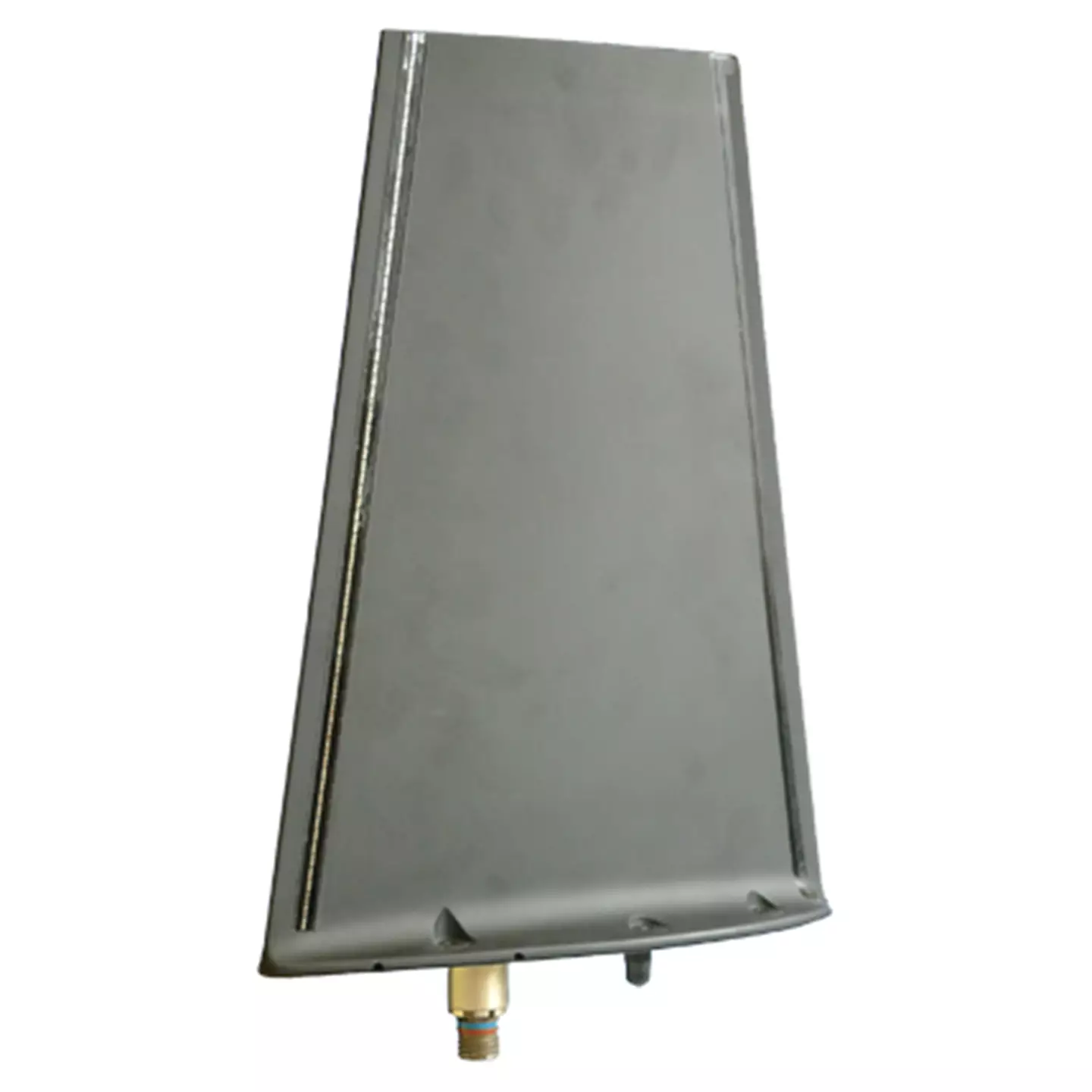

The 12-146 is a VHF tuneable blade antenna operating over the frequency band 30-88 MHz

Specification

30 Minimum Frequency

88 Maximum Frequency

50 Impedence

30-88 MHz < 3.0:1 Return Loss VSWR

30 MHz > 6.0 dBi Gain

Vertical Polarization

25 Peak Power Watts

25 Average Power Watts

301 x 92 x 400 Full Dimensions LxWxH mm

1.95 Mass kg

TNC Female Connector Type

25000 Altitude ft

40 Continuous Operating Temperature Min - C

85 Continuous Operating Temperature Max C

MIL-STD-810E, Method 514.4, Proc I, Cat 6 mod Vibration
