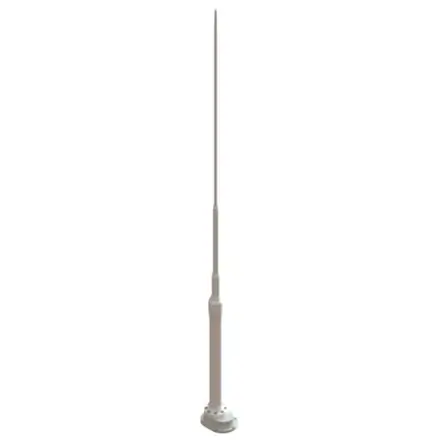

VHF Whip Antenna – 18-13

VHF Whip Antenna – 18-13

The 18-13 antenna is a high gain whip antenna that operates over the VHF communications band of 30 MHz to 88 MHz and is designed predominantly for use on helicopters.

  • ✔ High gain
  • ✔ Suitable for helicopters
Click to enlarge

Specification

30 Minimum Frequency
88 Maximum Frequency
50 Impedence
30 to 88 MHz: 2.5:1 Return Loss VSWR
30 MHz: -8 dBi av Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
1.3 Mass kg
18-13 TNC Female Connector Type
15000 Altitude ft
40 Continuous Operating Temperature Min - C
55 Continuous Operating Temperature Max C
