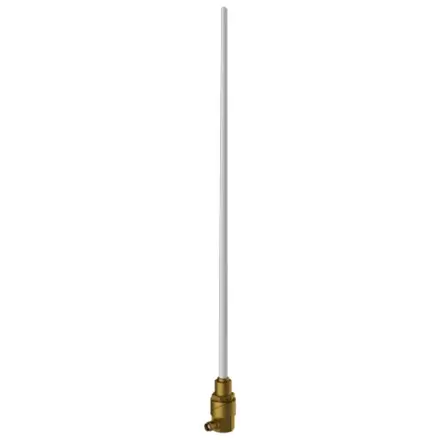

VHF Whip Antenna for 135-75MHz – 21-5E

The 21-5E is a lightweight Whip antenna with several bandwidth variants available.

  • ✔ Lightweight Whip
  • ✔ BNC and TNC types available
  • ✔ Several bandwidth options available
Click to enlarge

Specification

135 Minimum Frequency
175 Maximum Frequency
50 Impedence
3.0:1 max. Return Loss VSWR
+3 ave Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
35 Peak Power Watts
23 x 23 x 493 Full Dimensions LxWxH mm
0.145 Mass kg
TNC Female Connector Type
30 Continuous Operating Temperature Min - C
40 Continuous Operating Temperature Max C
BS3G100 Part 2 Section 3 subs 3.1 Cat 4 Vibration
BS3G100 Standards
