VOR/LOC Blade Antenna – 19-78

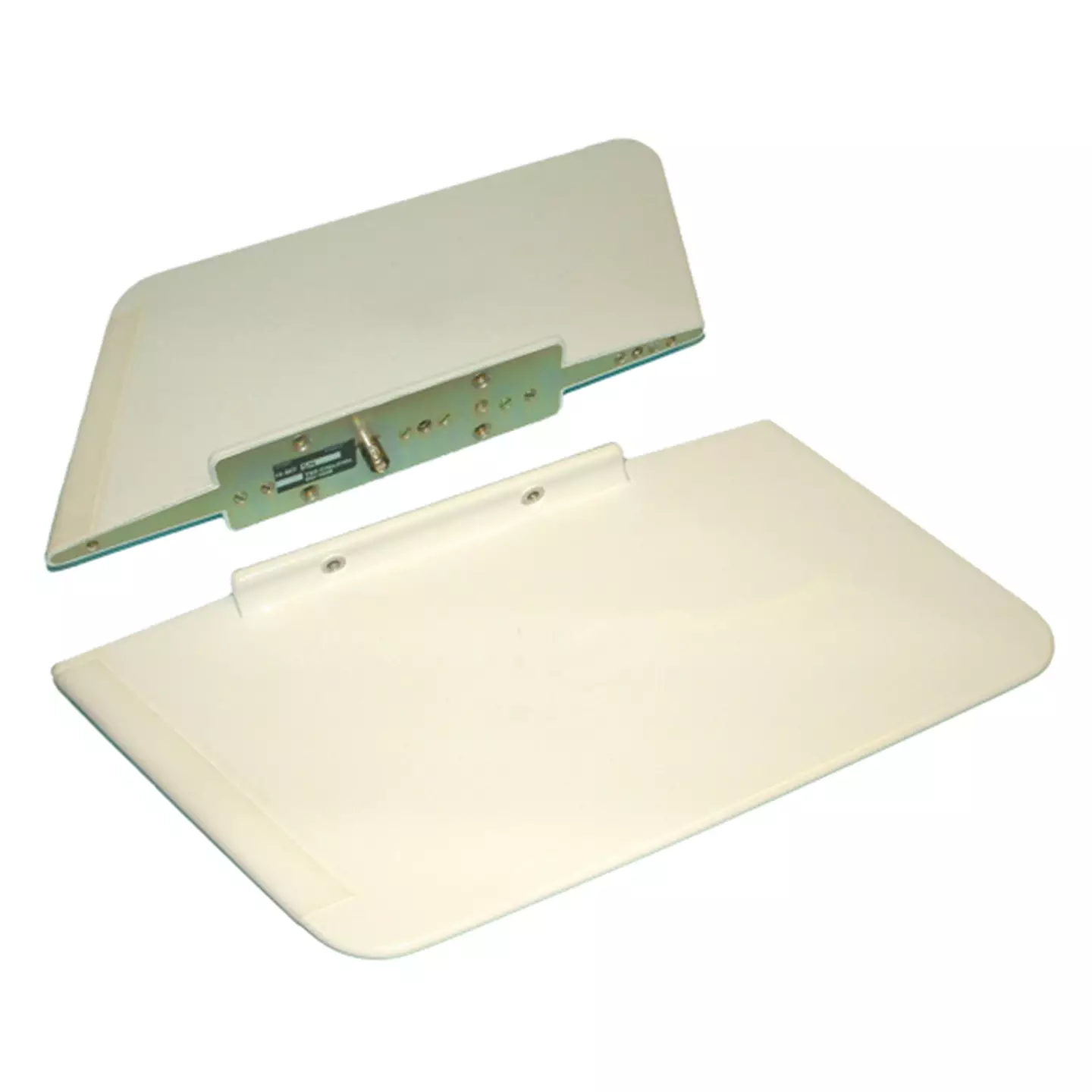

The 19-78 Antenna system provides for the reception of VOR/LOC signals and comprises a pair of 19-78 blade antennas, mounted horizontally opposed one on each side of the vertical stabiliser or fuselage. The antennas are connected via an appropriate antenna coupler. The antenna system is intended to comply with the requirements of TSO C36e and C40c. Designed to work with 7-41-1 or 7-78 coupler

  • ✔TNC or BNC RF connector
  • ✔Lightning protected version available
  • ✔ Designed to comply with TSO C36e, C40c
  • ✔Lightweight
Click to enlarge

Specification

108 Minimum Frequency
118 Maximum Frequency
50 Impedence
<5.0:1 Return Loss VSWR
Horizontal Polarization
Omnidirectional Radiation Pattern Azimuth
365 x 48 x 150 Full Dimensions LxWxH mm
0.5 Mass kg
TNC or BNC Female Connector Type
35000 Altitude ft
55 Continuous Operating Temperature Min - C
70 Continuous Operating Temperature Max C
DO-160B, Sect 8, Cats L, J&R Vibration
DO-160C, Sect 23, Cat 2B (19-78LP) Lightning
