VOR/LOC/GS Blade Antenna System – 19-71

VOR/LOC/GS Blade Antenna System – 19-71

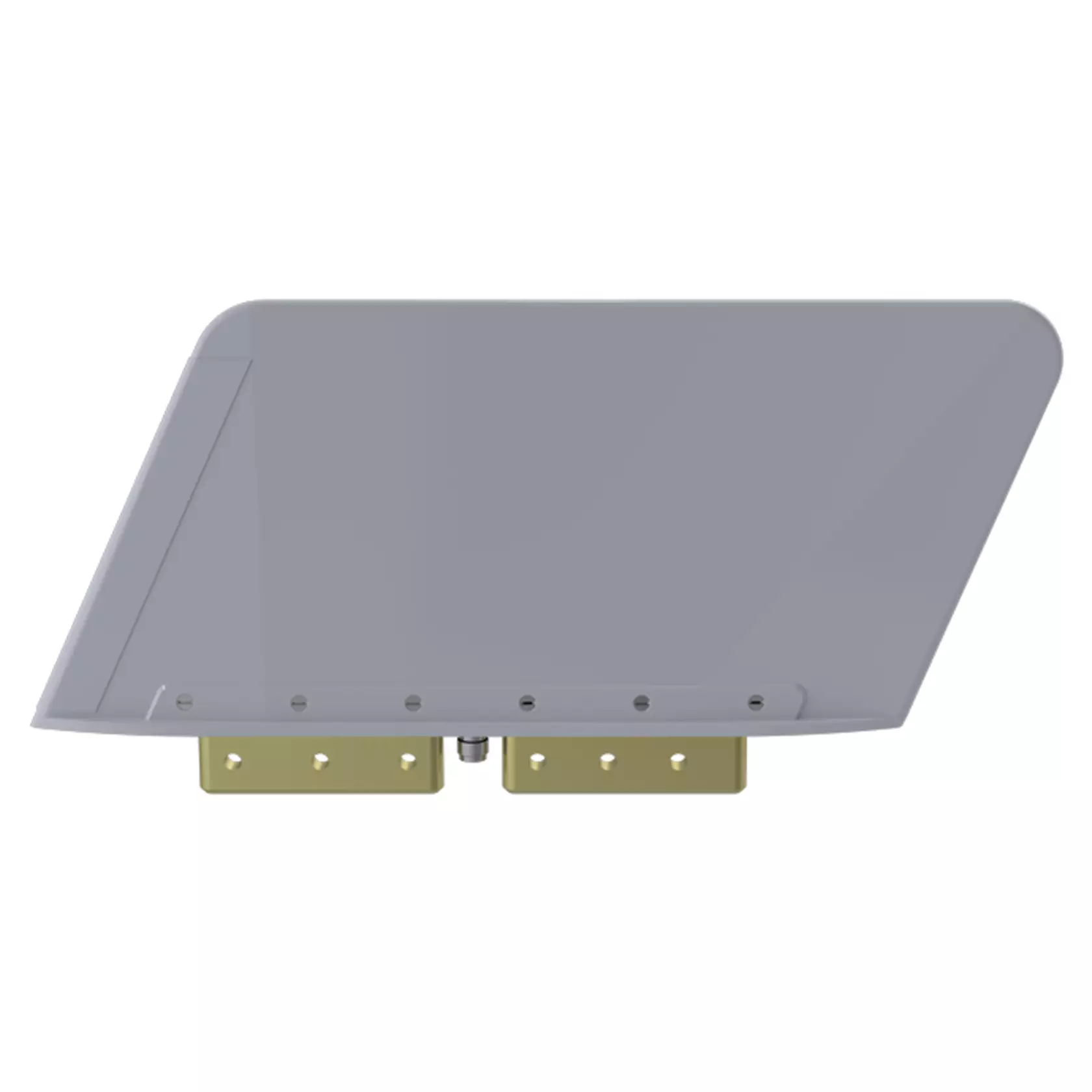

The 19-71 antenna system provides for reception of VOR, LOCALISER and GLIDESCOPE signals, and comprises a pair of blades for horizontally opposed mounting, one on each side of the vertical stabiliser or fuselage, plus an appropriate antenna coupler to feed one or two VOR/LOC and glideslope receivers.

  • ✔High performance aircraft
Click to enlarge

Specification

108 Minimum Frequency
336 Maximum Frequency
50 Impedence
5:1 max Return Loss VSWR
Horizontal Polarization
Omnidirectional Radiation Pattern Azimuth
365 x 31 x 153 Full Dimensions LxWxH mm
0.8 Mass kg
TNC Female Connector Type
48000 Altitude ft
65 Continuous Operating Temperature Min - C
90 Continuous Operating Temperature Max C
