Wideband Receive Antenna – 12-210

12-210 Datasheet

Wideband Receive Antenna – 12-210

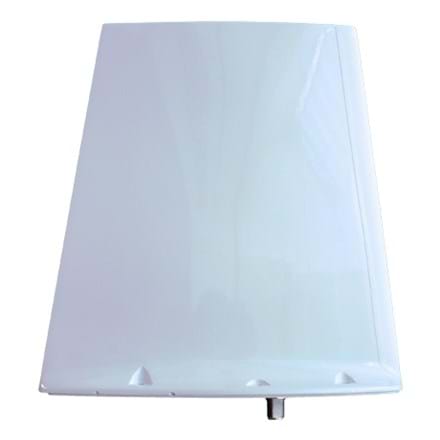

The 12-210 and 12-210SST are broadband passive blade antennas designed for receive only use over the frequency range 20 to 2500 MHz in general airborne applications.

Click to enlarge

Specification

20 Minimum Frequency
2500 Maximum Frequency
50 Impedence
> 6 dB (>3.0:1) Return Loss VSWR
> -44 dBi @ 20 MHz rising to > -12 dBi @ 88 MHz Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
1.7 Mass kg
N Female Connector Type
50000 Altitude ft
54 Continuous Operating Temperature Min - C
55 Continuous Operating Temperature Max C
12-210 Datasheet
